86 10... Removing wheel bearing: Installation

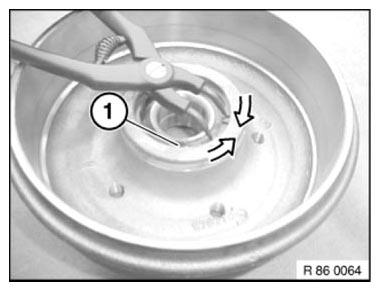

Replace expanded or damaged snap rings (1). Ensure correct seating.

Fig 1: Removing Snap Rings

Courtesy of BMW OF NORTH AMERICA, INC.

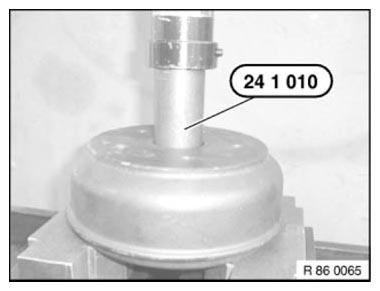

Press out wheel bearing with special tool 24 1 010.

Fig 2: Pressing Wheel Bearing Using Special Tool 24 1 010

Courtesy of BMW OF NORTH AMERICA, INC.

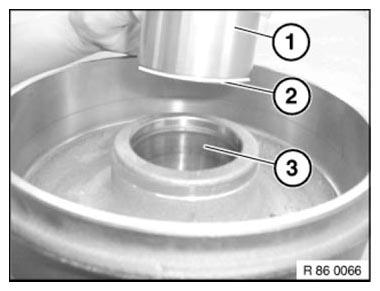

Place new wheel bearing (1) with lathe-turned end (2) in center of bore in brake drum (3).

Before pressing in new wheel bearing, check bearing seat for possible damage.

Make sure wheel bearing is not tilted when pressed in.

Fig 1: Identifying Wheel Bearing With Lathe-Turned End And Brake Drum

Courtesy of BMW OF NORTH AMERICA, INC.

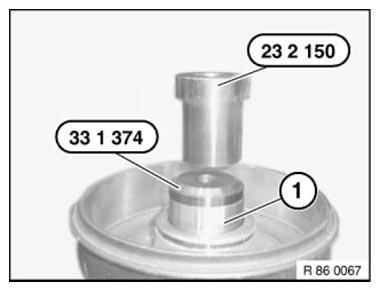

Press in new wheel bearing (1) with special tool 23 2 150 and 33 1 374.

Fig 2: Pressing Wheel Bearing Using Special Tool 23 2 150 And 33 1 374

Courtesy of BMW OF NORTH AMERICA, INC.
