86 10... Replacing drawbar members, left and right: Installation

Tightening Torque, 86 10 16AZ

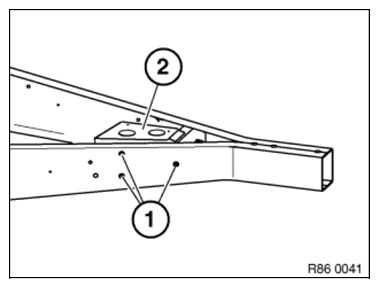

Fig 1: Identifying Screws On Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

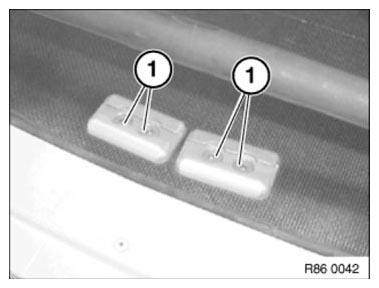

Release countersunk head screws (1) and remove.

Tightening Torque, 86 10 3AZ

Fig 1: Identifying Countersunk Head Screws

Courtesy of BMW OF NORTH AMERICA, INC.

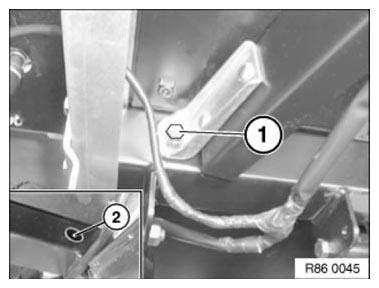

Remove cable holder (1) and remove wiring harness (2) from drawbar member (3).

Fig 2: Identifying Cable Holder With Wiring Harness On Drawbar Member

Courtesy of BMW OF NORTH AMERICA, INC.

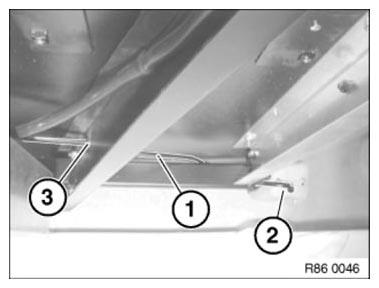

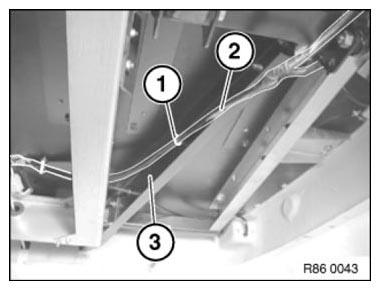

Remove cable (1) from position light housing (2). Pull out cable (1) through drawbar member aperture (3).

Fig 3: Identifying Cable, Light Housing And Drawbar Member Aperture

Courtesy of BMW OF NORTH AMERICA, INC.

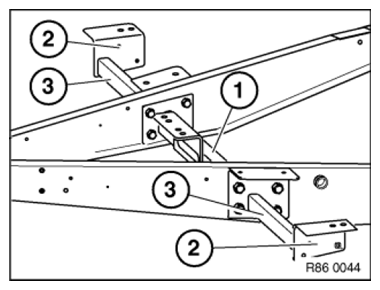

Release all screws on cross-member (1) and remove cross-member (1).

If necessary, release screws on mounting brackets (2) and remove cross-members (3).

Use new self-locking nuts.

Tightening Torque, 86 10 17AZ

Fig 1: Identifying Cross-Members With Screws On Mounting Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1). Grip nut from rear through assembly hole (2) in crossmember.

Use new self-locking nuts.

Tightening Torque, 86 10 18AZ

Fig 1: Identifying Rear Through Assembly Hole In Crossmember With Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

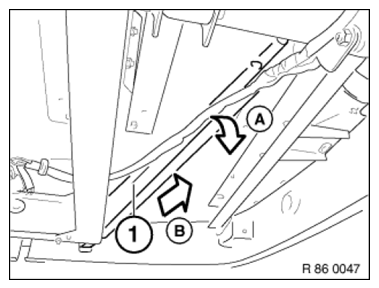

Tilt drawbar member (1) down in direction of arrow A and pull out towards rear in direction of arrow B.
