86 10... Replacing position light

Unclip cover (1) on side recess (arrow).

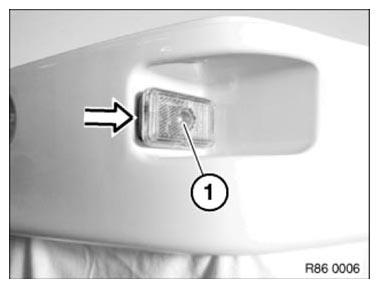

Fig 1: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Pull flat connector (1) from flat contact.

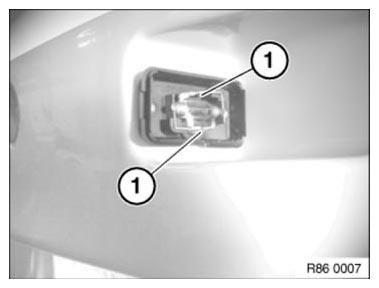

Fig 2: Identifying Flat Connector And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out cable (1) completely.

CAUTION: Before drilling out rivet heads, drive in rivet pins with a punch.
Drill out rivet heads (2) and remove position light housing from front.

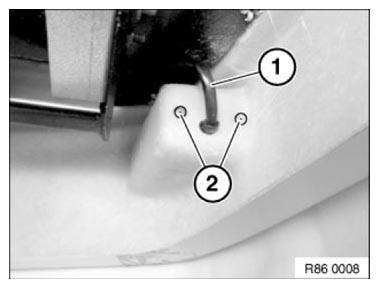

Fig 3: Identifying Cable And Rivet Heads

Courtesy of BMW OF NORTH AMERICA, INC.
