86 10... Replacing rear light: Notes

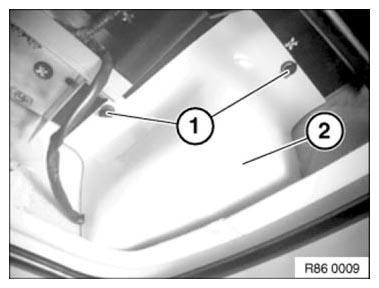

Release thumb screws (1), slide light guard (2) in direction of middle of car and tilt out towards rear.

Fig 1: Identifying Light Guard With Thumb Screws

Courtesy of BMW OF NORTH AMERICA, INC.

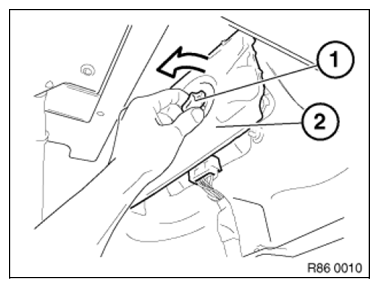

Turn handwheel (1) counterclockwise in direction of arrow and remove base (2).

Fig 2: Removing Base

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and press rear light (2) out towards front.
