Collision - Body Dimensions (F01, F02)
›
Body Dimensions
›
41 00... Frame Alignment Control Body Dimensions
›
B-Pillar
41 00... Frame Alignment Control Body Dimensions: B-Pillar
Courtesy of BMW OF NORTH AMERICA, INC.

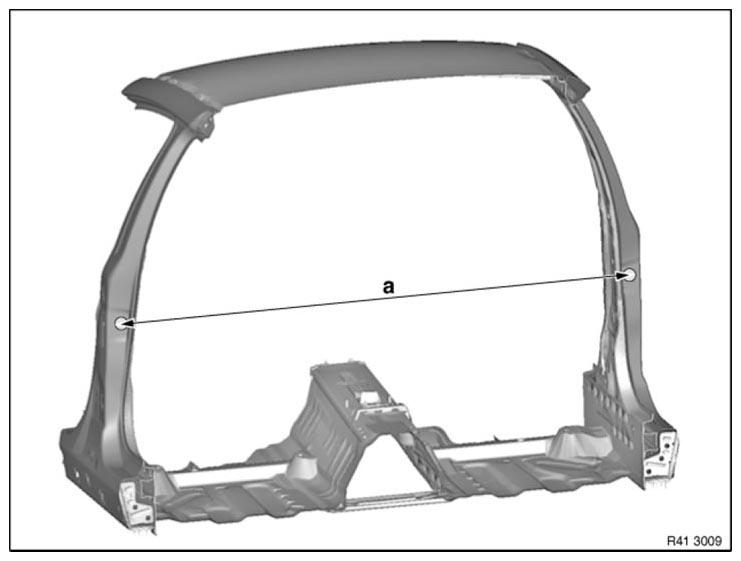

Measurement a=1634 mm between screw-on points of door brakes.
