Collision - Body Dimensions (F01, F02)
›
Body Dimensions
›
41 00... Frame Alignment Control Body Dimensions
›
Under Body View 1
Under Body View 1

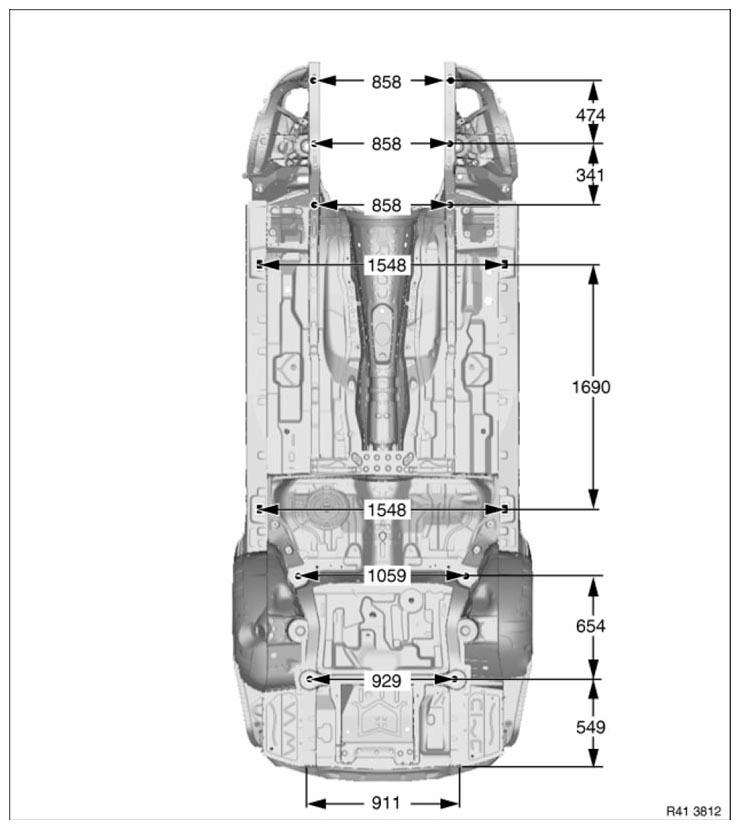

Fig 1: Under Body Dimensions And Measurement Points (Under Body View 1)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
