Image Defects

Incorrect installation of the HUD or of the windshield may result in faulty HUD projections.

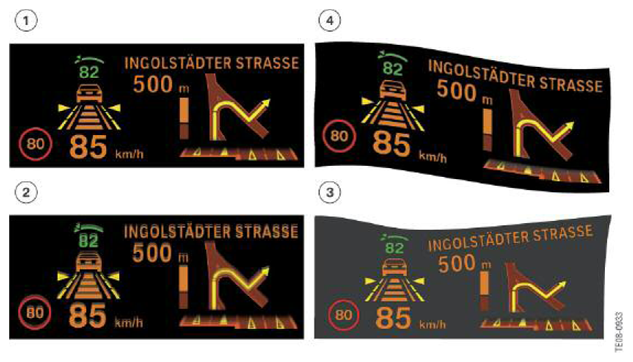

Fig 1: Display HUD Image Defects

Courtesy of BMW OF NORTH AMERICA, INC.

HUD Image defects are explained as follows:

• Image 1 is compressed, (windshield installed incorrectly)
• Image 2 is duplicated, (wrong windshield installed)
• Images 3 and 4 are distorted, the HUD has been fitted incorrectly

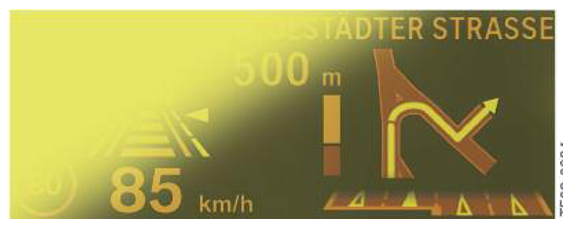

The image is blanked out by light striking the windshield or the HUD in unfavorable light conditions. Excessive heat in the HUD will also cause the image to fade.

Fig 2: Display Image Defect Caused By Incident Light Or Overheating On HUD

Courtesy of BMW OF NORTH AMERICA, INC.
