Lane Departure Warning

In the F01/F02, a front facing video camera and the corresponding button in the BEFAS control panel indicate that the vehicle is equipped with the lane departure warning.

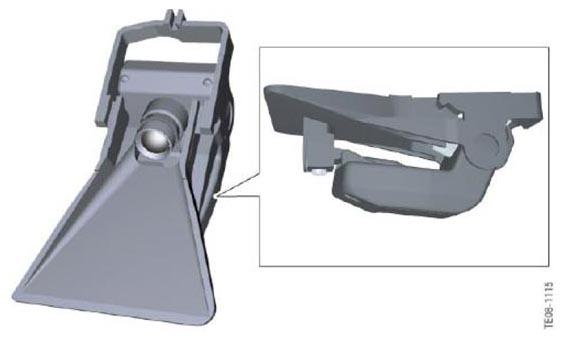

Fig 1: Video Camera For Lane Departure Warning

Courtesy of BMW OF NORTH AMERICA, INC.

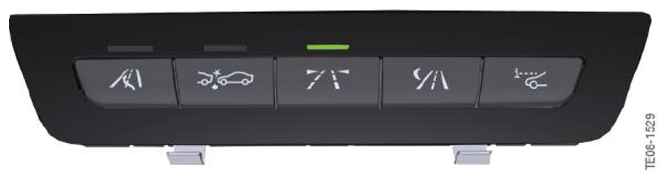

Fig 2: Display Lane Departure Warning Control Panel

Courtesy of BMW OF NORTH AMERICA, INC.

The image data recorded by the video camera are transmitted to the KAFAS control unit along an LVDS data line. The video camera and the control unit are the components that are fundamental to the lane departure warning's range of functions.

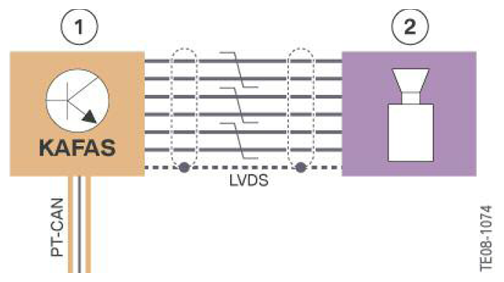

Fig 3: Identifying KAFAS Control Unit With PT-CAN And Lane Departure Warning Camera With LVDS

Courtesy of BMW OF NORTH AMERICA, INC.

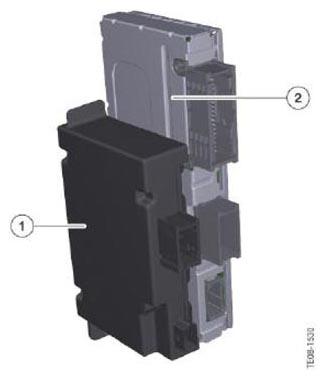

Fig 4: Identifying KAFAS Control Unit Driver Footwell And Central Module

Courtesy of BMW OF NORTH AMERICA, INC.
