Smartphone Integration

The "Smartphone Integration" optional extra enables the customer to play back audio files saved on a mobile phone. The option adds a USB port to the telephone base plate snap in cradle. The mobile phone can be connected to the car with a compatible snap-in cradle adapter, with all telephone functions remaining fully available.

Simultaneous use of the mobile phone in the snap-in adapter and the USB port in the center console is possible. However, the audio files on the mobile phone cannot be accessed while a device is connected to the USB port.

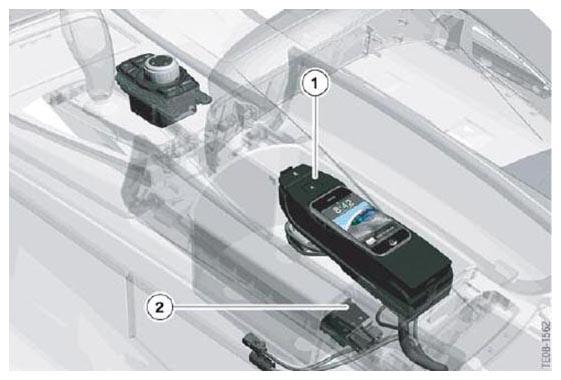

Fig 1: Identifying USB Audio Interface, Base Plate With Snap In Adapter And Mobile Phone

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX REFERENCE CHART

Index	Explanation
1	Base plate with snap-in adapter and mobile phone
2	USB audio interface

The audio files can be selected in the 'CD/Multimedia' menu, where they are in the "External devices" submenu.

Smartphone Integration is offered only in combination with "USB audio interface" option and is currently only available with the iPhone.

NOTE: For detailed information about these systems, see the F01/F02 "AUDIO SYSTEMS " training material.
