Telephone Antenna System: Notes

In order to meet the high quality requirements that apply to the telephone system of the F01/F02, several antennas are installed in the vehicle, with the configuration depending on equipment trim level.

The following antennas are used for this purpose:

Roof antenna
Bluetooth antenna
Emergency-call GSM antenna

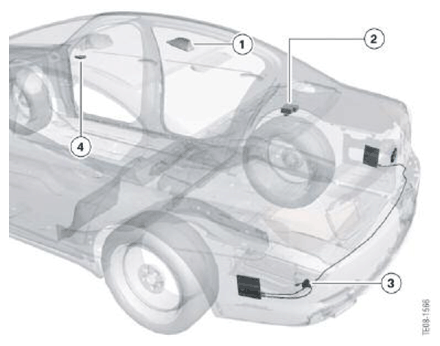

Fig 1: Identifying Telephone Antenna System

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX REFERENCE CHART

Index	Explanation
1	Roof Antenna
2	Emergency-call GSM (back-up) antenna
3	Not for US
4	Bluetooth antenna
