Principals of Operation: Display

The display used for the Car Information Computer is the same CID (Central Information Display) known from the CCC.

In the F01/F02, the screen size has increased to a diagonal of 10.2" (26cm).

The number of pixels has doubled in the CID from 640x240 pixels for the CCC display to 1280x480 pixels in the CIC central display.

The new display delivers a crisp and improved picture quality compared to the previous system.

The graphic layout of the user interface has been totally redesigned.

The rear view of the F01/F02 control display is shown in the following with the two connections.

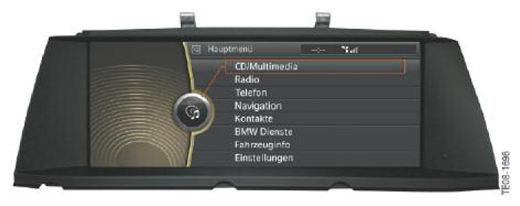

Fig 1: Front View Of Control Display F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.

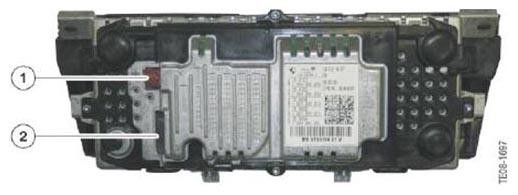

Fig 2: Rear View Of Control Display F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.
