USB Hub
The USB hub allows multiple USB interfaces to be connected to the ULF-SBX High.
The USB hub incorporates an active USB signal amplifier and is equipped with two USB inputs and one USB output.

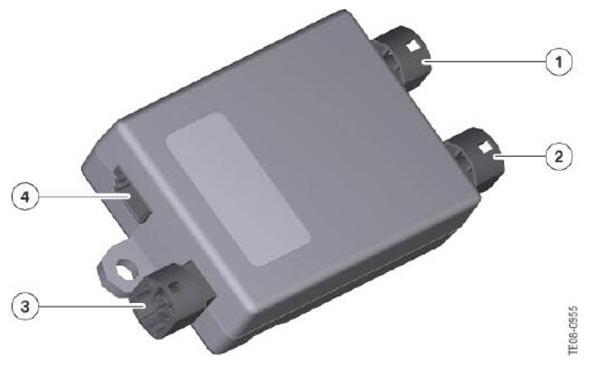

INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | USB connection to AUX-in connection (blue connector) |
| 2 | USB connection for base plate of the Smartphone audio line (neutral color connector) |
| 3 | USB connection to (ULF-SBX-High) interface box (black connector) |
| 4 | Power supply for the USB hub (black connector) |
NOTE:
The USB hub is only used if the vehicle has the Smartphone Integration option.

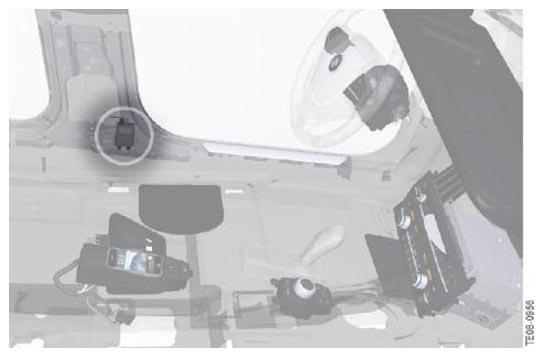

The USB hub on the F01/F02 is installed behind the trim panel for the left-hand B-pillar. It is installed in the same place on both right-hand drive and left-hand drive vehicles.
