Main AC Components

The A/C compressor location and refrigerant lines routing in engine compartment.

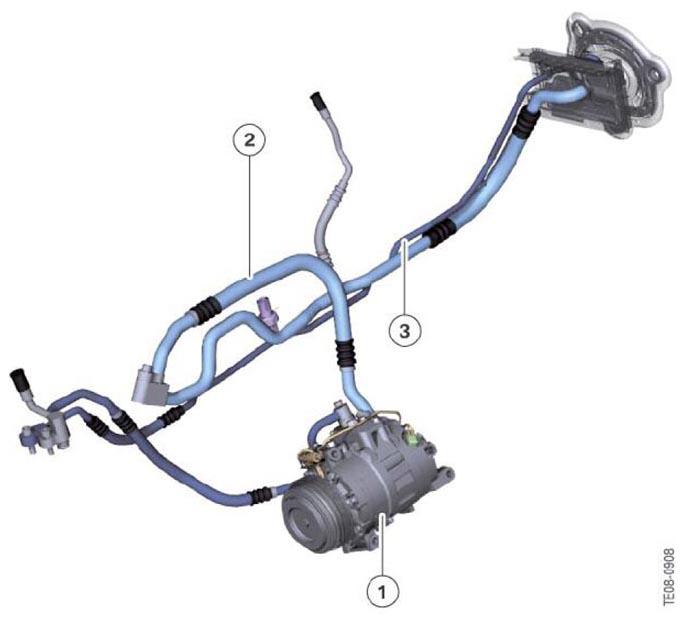

Fig 1: Identifying F01/F02 A/C Compressor And Refrigerant Lines

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

Index	Explanation
1	A/C compressor
2	Refrigerant circuit intake line
3	Refrigerant circuit pressure line with pressure sensor
