Adaptive front passenger airbag with active vent valve

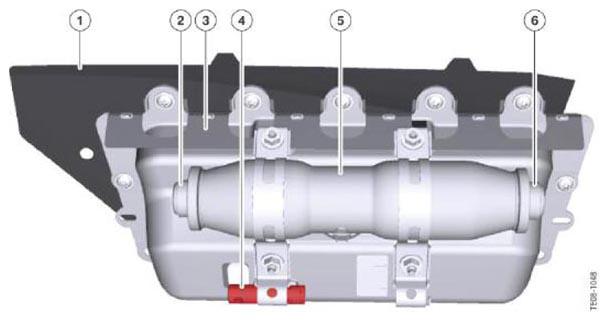

Fig 1: Identifying Adaptive Front Passenger Airbag, Two-Stage With Vent Valve

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX CHART

Index	Explanation
1	Cover for airbag
2	First stage squib
3	Airbag housing
4	Actuator for active vent valve
5	Inflator assembly
6	Second stage squib
