Notes
Function of Air Springs: Notes
The various control modes on the F01/F02 are similar to those on other model series such as the E70:

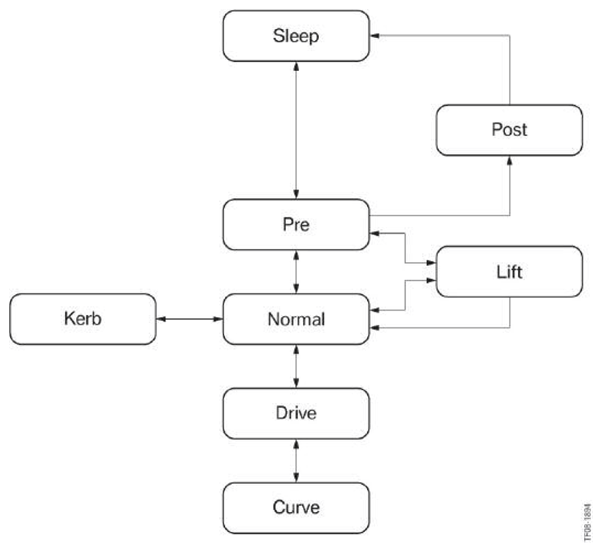

Fig 1: EHC Control Mode Flowchart, F01/F02
Courtesy of BMW OF NORTH AMERICA, INC.
