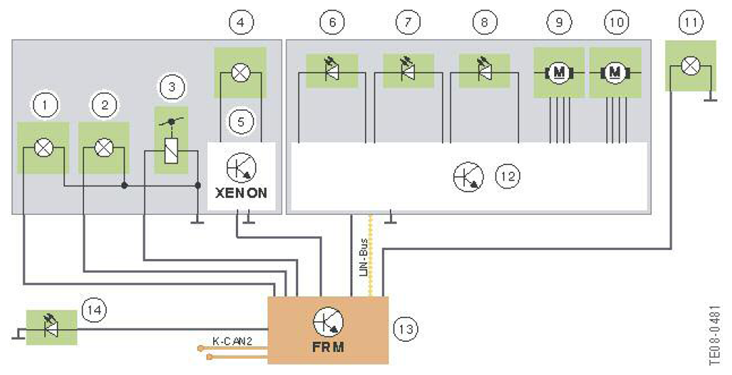

Illumination, Front
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Turning light |
| 2 | Side lights/daytime driving light |
| 3 | High beam shutter, bi-xenon |
| 4 | Bi-xenon lamp for driving light/high-beam headlight |
| 5 | Xenon ballast |
| 6 | Side marker light |
| 7 | Direction indicator lights |
| 8 | Design light |
| 9 | Stepper motor, headlight vertical aim control |
| 10 | Stepper motor for adaptive headlight |
| 11 | Fog lights |
| 12 | Headlight driver module |
| 13 | Footwell module |
| 14 | Direction indicator repeater, left |
