Side Light, Low Beam and High Beam: Notes
The exterior lighting system is switched on via the light switch.
The following table shows the terminal setting for switching on the exterior lighting.
LIGHT FUNCTIONS
| Light function | Activation by | Terminal |
|---|---|---|
| Side lights | Light switch, position 1 | Terminal 30F ON |
| Low beam headlight | Light switch, position 2 | Terminal 15 ON |
| High-beam headlight | Briefly press steering column stalk forward | Terminal 15 ON |
| Headlight flasher | Pull steering column stalk back | Terminal R ON |
The control panel contains the light switch for the side lights and low beam headlights as well as the following components:
- Fog light button
- Display for automatic driving lights control
- Thumbwheel for dimming the instrument lighting.

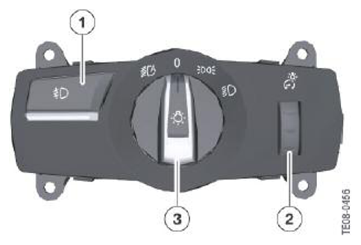

Examples of the lights control panel:
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Fog lights |
| 2 | Dimmer, instrument lighting |
| 3 | Light switch |
