Directions of movement

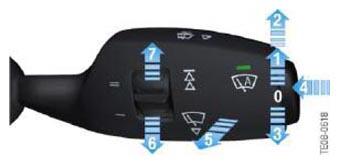

Fig 1: Identifying Wiping And Wiper Switch Movement Directions
G06925157Courtesy of BMW OF NORTH AMERICA, INC.
WIPER SWITCH MOVEMENT DIRECTIONS

Index Explanation
0 Steering column stalk/start position of wiper-stage switch
1 Wiper stage 1
2 Wiper stage 2
3 Wiping while steering column stalk operated
4 Activates/deactivates the rain/lights/solar/condensation sensor
5 Washer fluid and windscreen wiper at same time
6 Increases the sensitivity of the rain/lights/solar/condensation sensor
7 Reduces the sensitivity of the rain/lights/solar/condensation sensor
