61 35 001 Removing and installing (replacing) trailer module
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .
Necessary preliminary tasks:
- Remove right LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

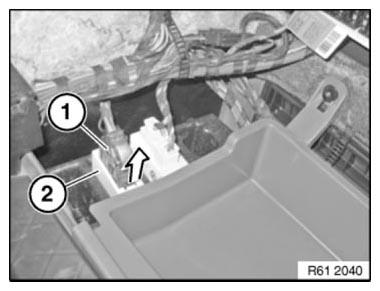

Disconnect plug connection (1).
Pull out trailer module (2) upwards in direction of arrow.
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
