BMW Night Vision 2: Introduction

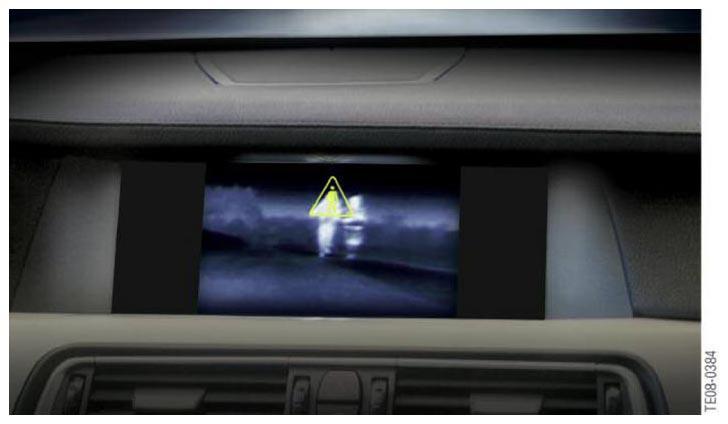

The BMW Night Vision 2 system provides the driver with a black-and-white image of the driving environment ahead of the vehicle in the control display CD or central information display CID.
BMW Night Vision 2 is a passive system without active infrared illumination. Objects situated ahead of the vehicle are shown in varying degrees of brightness depending on the temperature of these objects. This enables the driver to detect in good time heat-emitting objects such as, for example, persons, animals and other vehicles.
This thermal image is recorded with a Far Infrared camera (FIR) via a special imaging sensor which detects the infrared radiation in a specific wavelength range.
Intelligent algorithms in the control unit makes it possible to automatically detect persons in the image. Following evaluation of distance and direction of movement, a symbol on the central information display CID and in the head-up display HUD warns the driver of any persons at risk.
The BMW system is distinguished from infrared systems by its robust resistance to dazzling, its long range and its clearly structured image.
The system offers the customer the following advantages:
- Highlighting of non-illuminated, heat emitting objects such as pedestrians, cyclists, vehicles and animals.
- Better overview of the driving situation thanks to the depiction of the route of the road beyond the headlight cone.
- Improved vision in twilight (dawn/dusk) and darkness.
- Symbol warning of persons at risk in the area ahead of the vehicle.
- No dazzle in the screen image caused by the headlights of oncoming vehicles.
- Display of dark courtyard and garage entrances.
Night Vision 2 is designed as a supporting system, which, with a modified driving style, affords the driver a better overview of the road conditions ahead of the vehicle.
