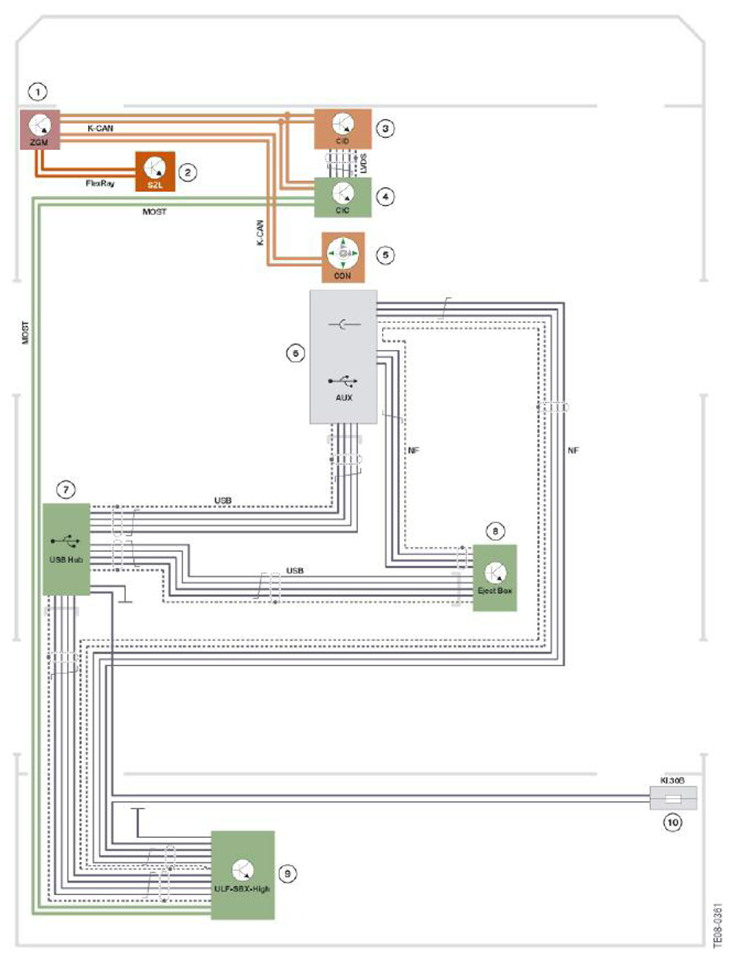

Smartphone Integration Option Circuit Diagram
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Central Gateway Module |
| 2 | Steering column switch cluster |
| 3 | Central Information Display |
| 4 | Car Information Computer |
| 5 | Controller |
| 6 | AUX-In connection combined for USB connection + jack plug |
| 7 | USB hub |
| 8 | Base plate of universal charging and hands-free (Not for US) |
| 9 | ULF-SBX-High (6FL) |
| 10 | Rear power distribution box |
| K-CAN | Body CAN |
| K-CAN 2 | Fast body CAN |
| FlexRay | FlexRay bus system |
| MOST | Media Orientated System Transport |
| LVDS | Low voltage differential signal |
NOTE:
Smartphone Integration uses a cradle to connect and play music stored in a mobile phone. Currently this feature is only available with the Apple iPhone®.
