8-wire LVDS

Transmission of video signals via 8-wire LVDS technology with CCC and CID.

(LVDS+ and LVDS- for each of the four signal lines and an additional synchronization line)

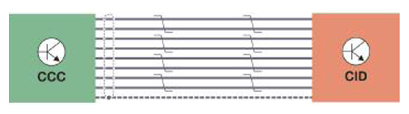

Fig 1: Identifying 8-Wire LVDS

Courtesy of BMW OF NORTH AMERICA, INC.

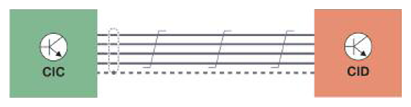

Fig 2: Identifying 2-Wire LVDS

Courtesy of BMW OF NORTH AMERICA, INC.
