12 61 280 Replacing oil pressure switch

Necessary preliminary tasks:

• Switch off ignition.
• REMOVE INTAKE AIR MANIFOLD .

Unlock plug and remove.

Remove oil pressure switch.

Installation:

Tightening torque, 13 62 2AZ .

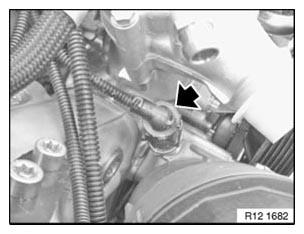

Fig 1: Locating Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.
