13 62 511 Replacing intake air temperature sensor

Necessary preliminary tasks:

Read out fault memory of DME control unit; if necessary, work through test schedules.
Switch off ignition.

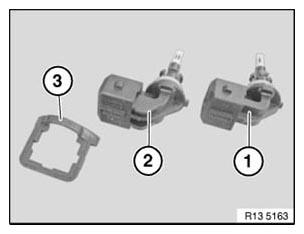

Intake air temperature sensor (1) without retaining clip.

Intake air temperature sensor (2) with large ribs for retaining clip (3).

Fig 1: Identifying Intake Air Temperature Sensor And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

Unlock plug and remove.

Turn temperature sensor through 45° and remove.

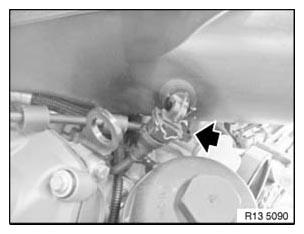

Fig 2: Locating Temperature Sensor Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Unlock plug and remove.

Pull off retaining clip (1).

Turn temperature sensor through 45° and remove.

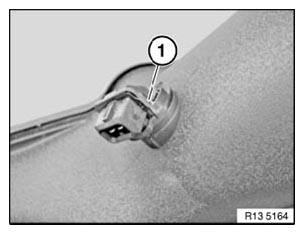

Fig 3: Identifying Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Now clear the fault memory.
Add final details to vehicle.
