51 71... Removing and installing/replacing multifunction pan

Necessary preliminary tasks:

View from below:

Unscrew nuts (1).

Tightening torque 61 12 3AZ .

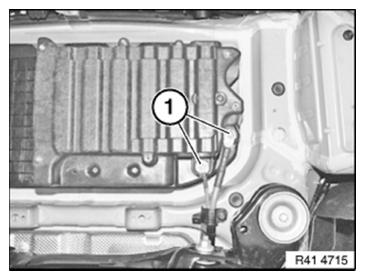

Fig 1: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Release battery wiring harness (2) and lay to one side.

Tightening torque 61 12 3AZ .

Release rivet joints (3) and remove multifunction pan.

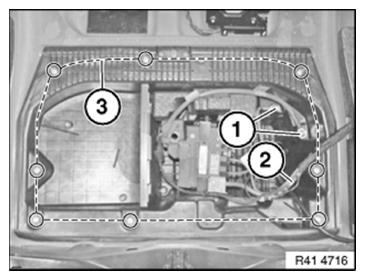

Fig 2: Identifying Rivet Joints, Battery Wiring Harness And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on multifunction pan (2) must be replaced each time they are removed.

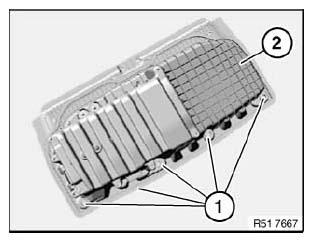

Fig 3: Identifying Seals On Multifunction Pan

Courtesy of BMW OF NORTH AMERICA, INC.
