61 42... Removing and installing/replacing DC/DC converter
NOTE:
DC/DC converter is installed in vehicles with automatic start-stop function.
IMPORTANT:
Read and comply with INFORMATION ON PROTECTION AGAINST DAMAGE FROM ELECTROSTATIC DISCHARGE .
Necessary preliminary work:
Unlock fasteners (1) from below and slide upwards approx. 10 mm.
Unlock locks (2) in direction of arrow.
Remove cover (3).

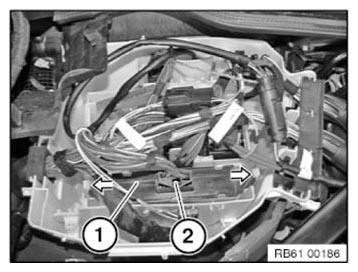

Release lugs in direction of arrow. Remove DC/DC converter (1) by pulling upward. Disconnect plug connection (2).
