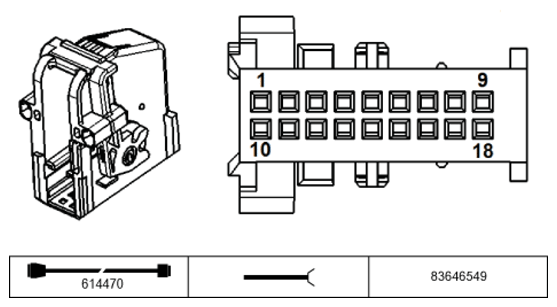

Instrument Cluster Control Module X11175 Connector End View
Pin Assignments At Plug Connector X11175
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not occupied | |
| 2 | -- | Not occupied | |
| 3 | -- | Not occupied | |
| 4 | E | Signal, outside temperature | Junction box |
| 5 | M | Ground, outside temperature | Junction box |
| 6 | E/A | CAN bus high | Junction box |
| 7 | E/A | CAN bus low | Junction box |
| 8 | -- | Not occupied | |
| 9 | E | Supply, terminal 30 | Junction box |
| 10 | -- | Not occupied | |
| 11 | -- | Not occupied | |
| 12 | -- | Not occupied | |
| 13 | -- | Not occupied | |
| 14 | -- | Not occupied | |
| 15 | -- | Not occupied | |
| 16 | E | Signal Onboard computer function | Steering column switch cluster |
| 17 | -- | Not occupied | |
| 18 | M | Ground | Junction box |
