11 00 039 Checking compression of all cylinders (N55)

Special tools required:

IMPORTANT: High energy - risk of serious injury or death. Interrupt power supply to ignition coils.

Necessary preliminary tasks:

Unscrew tip (1) from special tool 11 0 222 .

IMPORTANT: Then check the Schrader valve that is now visible for secure seating.

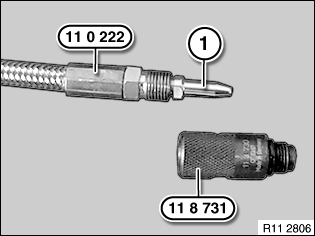

Fig 1: Identifying Special Tool (11 0 222) And (11 8 731)

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 11 0 222 in conjunction with 11 8 732 and 11 8 731 .

Fig 2: Preparing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 222 into special tool 11 8 731 to 10 Nm.

IMPORTANT: Oil thread on special tool 11 8 731 .

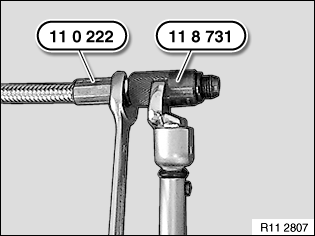

Fig 3: Screwing Special Tool (11 0 222) Into Special Tool (11 8 731)

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 222 by hand into spark plug thread and connect special tool 11 0 224 .

Depress accelerator pedal and actuate starter until compression pressure stops rising.

Fig 4: Identifying Special Tools (11 0 222) And (11 0 224)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Delete fault memory.
