54 10... Removing And Installing/Replacing Front Drive Cable Plate

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MECHANISM FOR GLASS COVER AT FRONT

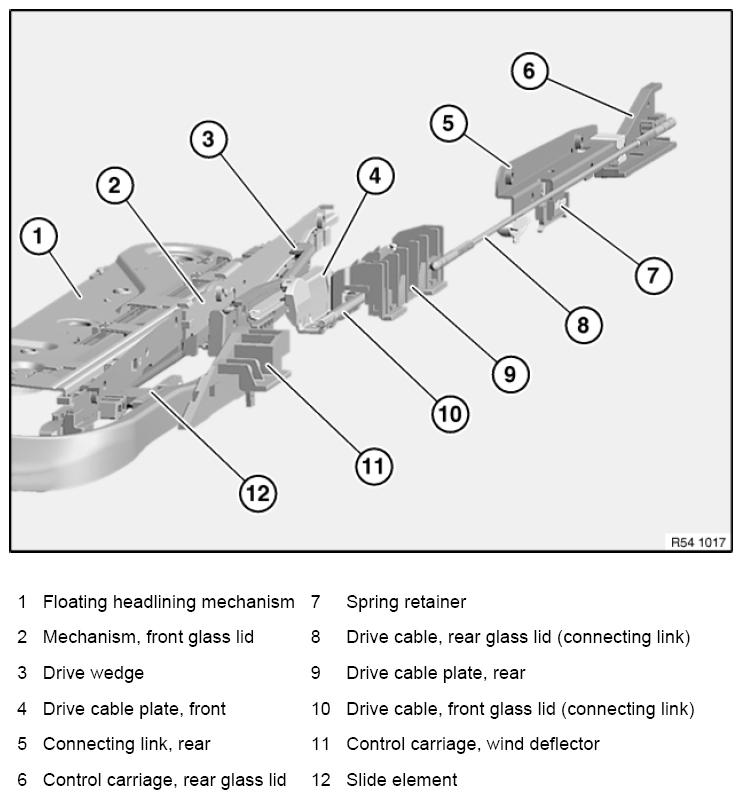

Overview of glass lid mechanism:

Fig 1: Overview Of Glass Lid Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Sliding Front Drive Cable Plate To Rear

Courtesy of BMW OF NORTH AMERICA, INC.

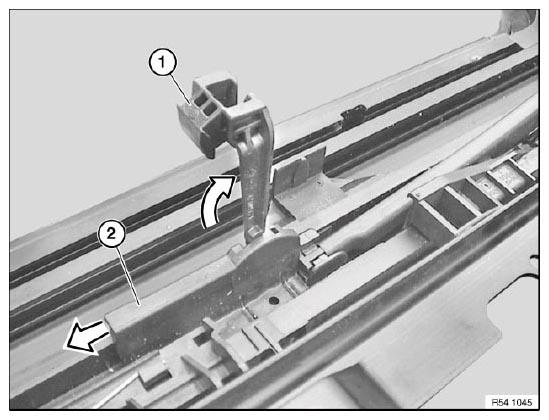

If necessary, remove the wedge (1).

Slide front drive cable plate (2) to rear and remove from guide rail.

Fig 3: Sliding Front Drive Cable Plate

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage when installing drive cable plate

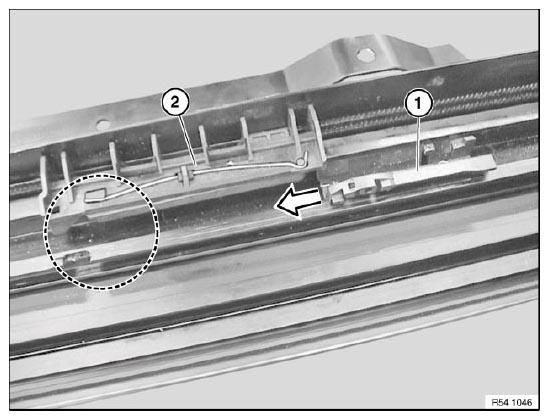

Before installation of front drive cable plate (1), rear drive cable plate (2) must be engaged.

Incorrect position can be identified on basis of spring position and level position (marked area).

Check engaging of rear drive cable plate (2) in guide rail.

Slide in front drive cable plate (1).

Installation note:

CLEAN GUIDE RAILS OF PANORAMA GLASS ROOF .

Observe GREASE INSTRUCTIONS for replacement parts.
