63 11... Installing headlight repair kit

Necessary preliminary work:

• REMOVE HEADLIGHT

Replacement of headlight is not required!

Original holder on the Xenon headlight and the corresponding holder from the repair kit are each marked with "Service I to V".

The numbering in the image corresponds to the numbering on the Xenon headlight.

Assignment of holder:

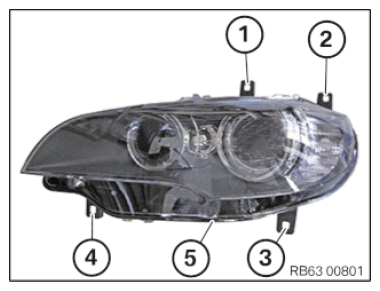

Fig 1: Identifying Headlight Holders

Courtesy of BMW OF NORTH AMERICA, INC.

The holders from the repair kit may need to be adjusted for installation on the LED headlight.

Remove damaged holders (1, 2, 3, 4, 5) as far as possible as illustrated.

Do not damage headlight housing!

Do not damage mountings for holders from the repair kit.

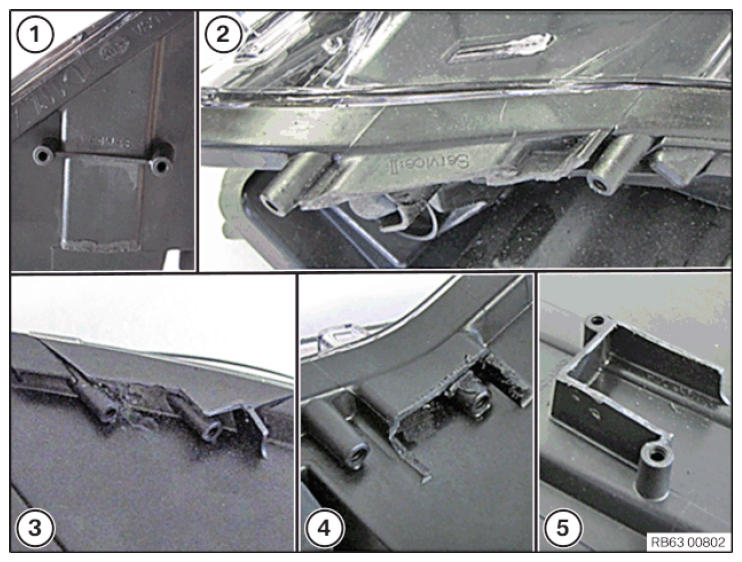

Fig 2: Removing Damaged Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Fit holder from repair kit (1, 2) as illustrated and tighten using enclosed screws (see arrows).

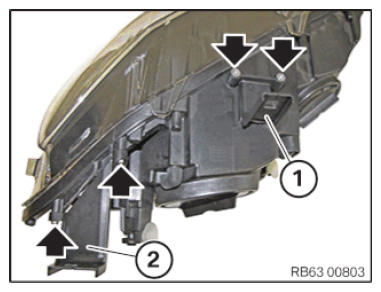

Fig 3: Fitting New Holders From Repair Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Fit holder from repair kit (3, 4, 5) as illustrated and tighten using enclosed screws (see arrows).

Slide sheet metal nut (2) onto holder (5).

After the repair

• INSTALL HEADLIGHT
• ADJUST HEADLIGHTS

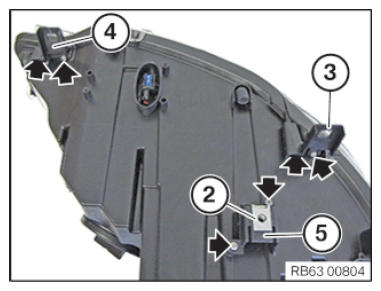

Fig 4: Identifying New Holders From Repair Kit And Sheet Metal Nut
Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work:

• Remove headlight. See LEFT HEADLIGHT  or RIGHT HEADLIGHT .

Replacement of headlight is not required!

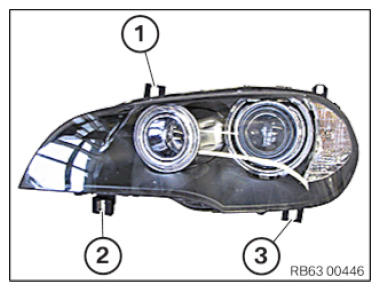

Fig 1: Identifying Headlight Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Remove damaged holders (1, 2, 3) as far as possible as illustrated.

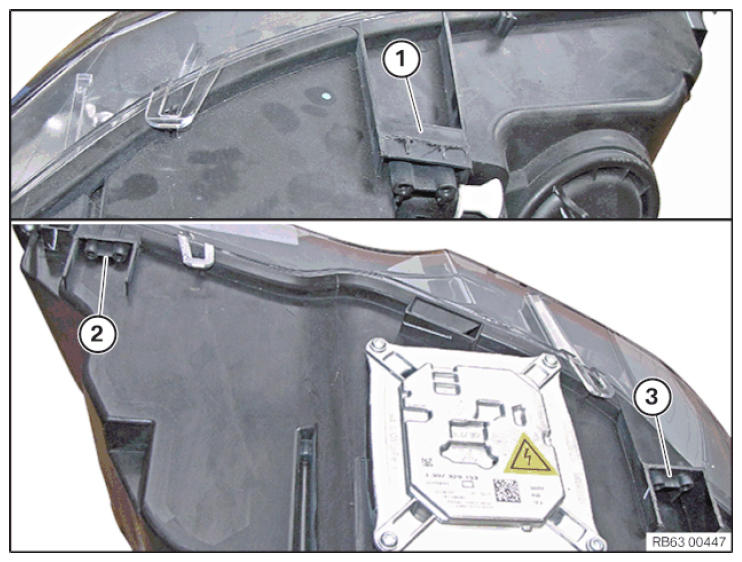

Fig 2: Removing Damaged Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Fit holder from repair kit (1, 2, 3) as illustrated and tighten using the enclosed screws (4).

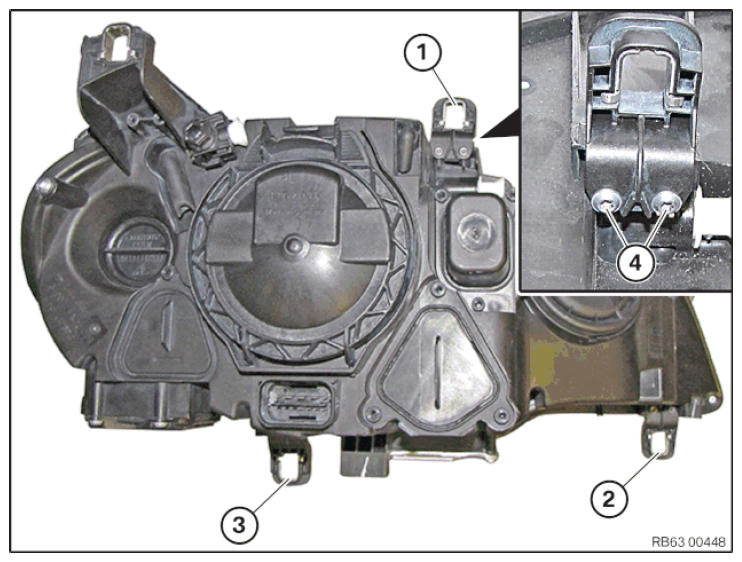

Fig 3: Identifying New Holders From Repair Kit And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After the repair

• Install headlight. See LEFT HEADLIGHT  or RIGHT HEADLIGHT .
• ADJUST HEADLIGHTS
