63 11... Replacing right LED main light module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

NOTE: Removal and installation of LED main light module is carried out from engine compartment.

Removal:

Release filler channel (1) at latch mechanism (2) and pull upwards.

Turn filler channel (1) away to side.

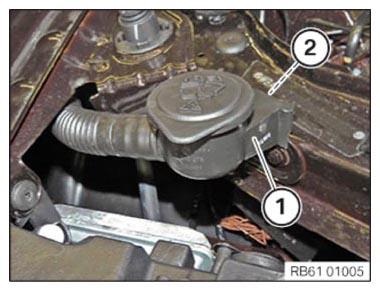

Fig 1: Identifying Filler Channel And Latch Mechanism

G09949771

Courtesy of BMW OF NORTH AMERICA, INC.

Release all screws (1) and pull LED main light module (2) out of headlight.

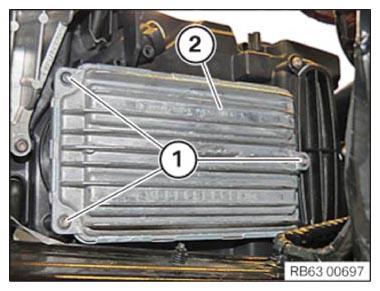

Fig 2: Identifying LED Main Light Module And Screws

G09949794

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Plug-in contacts (1) on LED main light module (3) must not be damaged.

Gasket (2) on LED main light module (3) must not be damaged and must be installed free of grease.

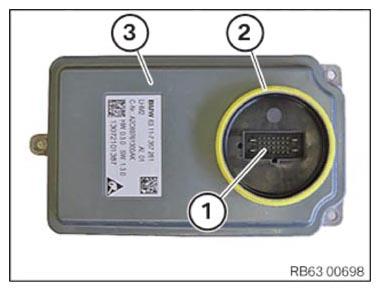

Fig 3: Identifying Gasket On LED Main Light Module

G09949795

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure connector (1) IS CORRECTLY FITTED ON HEADLIGHT (2) .

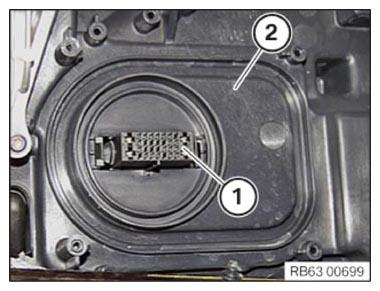

Fig 4: Identifying Headlight Connector

G09949796

Courtesy of BMW OF NORTH AMERICA, INC.

Insert LED main light module (2) into headlight and tighten with screws (1).

Tightening torque 63 11 1AZ .

Fig 5: Identifying LED Main Light Module And Screws

G09949794

Courtesy of BMW OF NORTH AMERICA, INC.

Insert filler channel (1) into holder.

NOTE: Make sure filler channel (1) is correctly fitted and engaged (2).

Fig 6: Identifying Filler Channel And Latch Mechanism

G09949771

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
