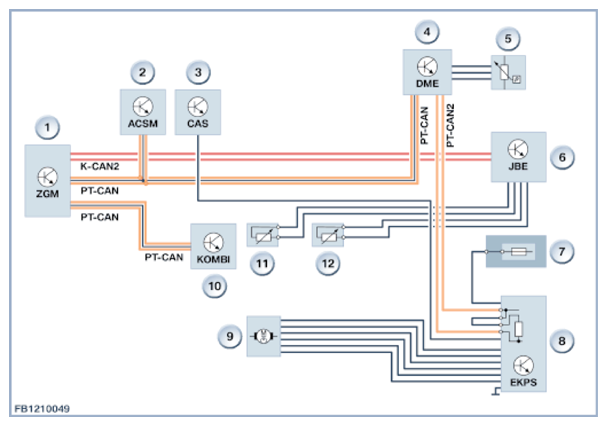

System overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
| Index | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | Crash Safety Module (ACSM) |
| 3 | Car Access System (CAS) |
| 4 | Digital engine electronics (DME) |
| 5 | Fuel low-pressure sensor |
| 6 | Junction Box Electronics (JBE) |
| 7 | Luggage compartment power distribution box |
| 8 | Electric fuel pump control (EKPS) |
| 9 | Electronic fuel pump |
| 10 | Instrument panel (KOMBI) |
| 11 | Fuel level sensor 2 (right) |
| 12 | Fuel level sensor 1 (left) |
