DME Control Module X60001 Connector End View

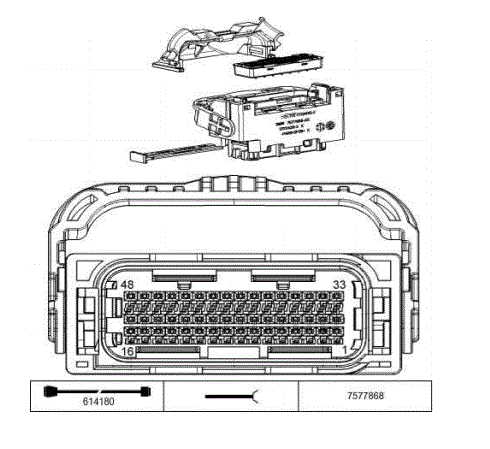

G00596541Courtesy of BMW OF NORTH AMERICA, INC.

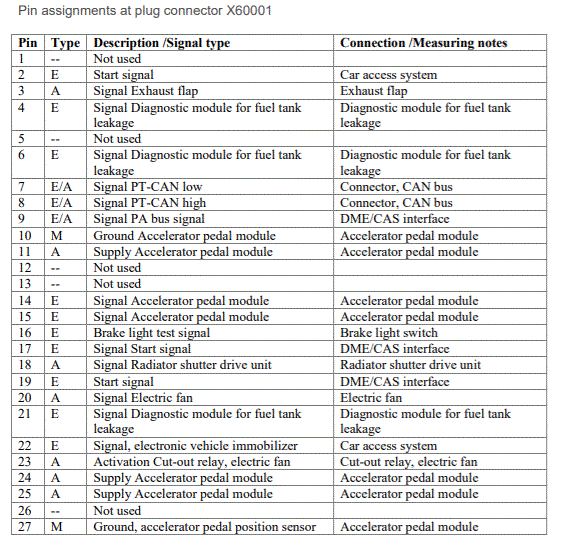

G00596546Courtesy of BMW OF NORTH AMERICA, INC.

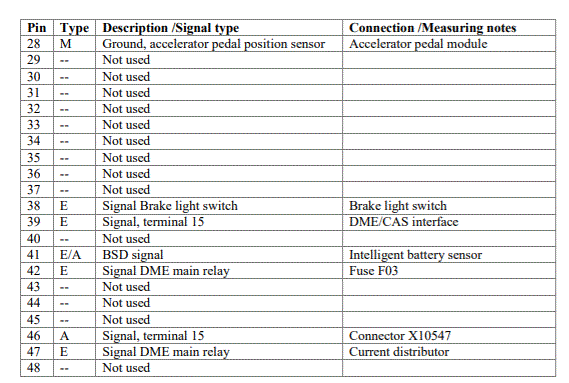

G00596547Courtesy of BMW OF NORTH AMERICA, INC.
