11 61 050 Removing and installing intake plenum (M57T2-SCR)

Necessary preliminary tasks:

(E9x only)

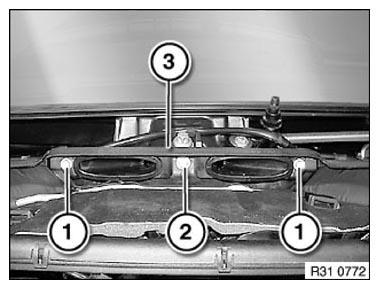

Release screws (1, 2).

Remove heater end panel (3).

Installation note:

Make sure heater end panel is correctly seated.

Fig 1: Identifying Heater End Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

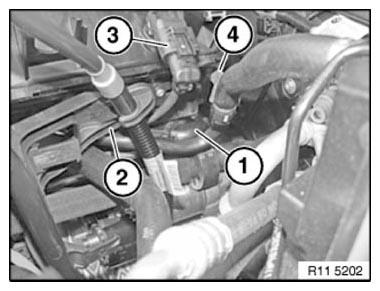

Disconnect plug connection (1) on swirl-flap actuator.

Release screw (2) on dipstick.

Disconnect plug connection for pressure sensor (3).

Unclip vacuum line (4) from holder.

Fig 2: Identifying Plug Connection On Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

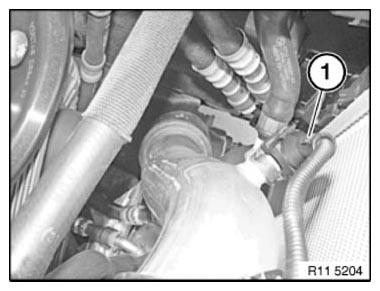

Disconnect plug connection (1) on right pressure pipe.

Fig 3: Identifying Plug Connection On Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

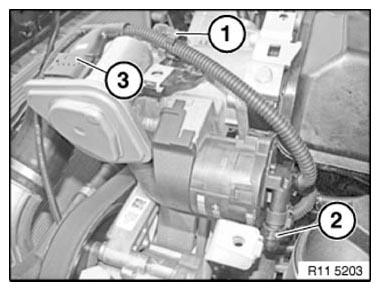

Open cable clips (1).

Disconnect plug connection (2) from exhaust-gas recirculation valve.

Disconnect plug connection (3) from electromotive throttle actuator.

Fig 4: Identifying Plug Connection On Exhaust-Gas Recirculation Valve

Courtesy of BMW OF NORTH AMERICA, INC.

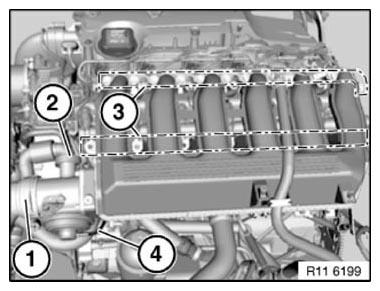

Unlock and detach charge air hose (1).

Release profile clamp (2) for exhaust gas recirculation line. Tightening torque: 11 71 1AZ .

Release screw connection along lines (3).

Tightening torque: 11 00 2AZ .

NOTE: Picture shows M57T2 Europe.

Fig 5: Identifying Profile Clamp On Exhaust-Gas Recirculation Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all gaskets.

Assemble engine.

Check function of DDE.
