13 62 610 Replacing crankshaft pulse generator (M47TU/M57TU/M47T2/M57T2)

Necessary preliminary tasks:

• Read fault memory of DDE control unit
• Remove STARTER MOTOR .

Pull plug (1) off pulse generator.

Detach mating connector (2) from holder.

Unscrew bolt (3).

Remove pulse generator.

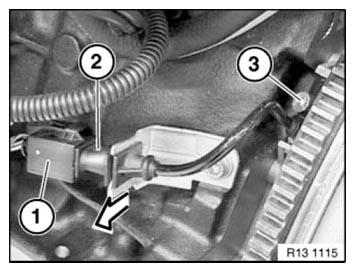

Fig 1: Detaching Mating Connector From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Clear DDE fault memory.
