12 31 009 Checking alternator and regulator switch

Test requirements:

Connect DIS Tester.

If charge indicator lamp is permanently lit:

Remove voltage regulator and check carbon brushes, replace if necessary.

Replace alternator regulator switch.

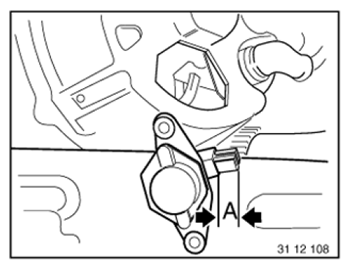

NOTE: Minimum length of carbon brushes "A" = 5 mm.

Fig 1: Identifying Carbon Brushes Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

If charge indicator lamp goes out while engine is running:

Check control voltage.

Regulator switch must be replaced if control voltage is not achieved.

Replace alternator regulator switch.

From E46/E39 with multifunction regulator.

Recognizable by plug connection on regulator.

Connect DIS Tester.

Oscillogram for a fault-free alternator:

Fig 2: Alternator Signal Waveform (Fault-Free)

Courtesy of BMW OF NORTH AMERICA, INC.

Oscillogram for a faulty alternator:

One phase interrupted.

Repair/exchange alternator.

Fig 3: Alternator Signal Waveform (Faulty Alternator)

Courtesy of BMW OF NORTH AMERICA, INC.

Interturn fault.

Repair/exchange alternator.

Fig 4: Alternator Signal Waveform (Interturn Fault)

Courtesy of BMW OF NORTH AMERICA, INC.

Open circuit in negative diode.

Repair/exchange alternator.

Fig 5: Alternator Signal Waveform (Open Circuit In Negative Diode)

Courtesy of BMW OF NORTH AMERICA, INC.

Short circuit in positive diode.

Repair/exchange alternator.

Fig 6: Alternator Signal Waveform (Short Circuit In Positive Diode)

Courtesy of BMW OF NORTH AMERICA, INC.

Open circuit in positive diode.

Repair/exchange alternator.

Fig 7: Alternator Signal Waveform (Open Circuit In Positive Diode)

Courtesy of BMW OF NORTH AMERICA, INC.

Open circuit in exciter diode.

Repair/exchange alternator.

Fig 8: Alternator Signal Waveform (Open Circuit In Exciter Diode)

Courtesy of BMW OF NORTH AMERICA, INC.
