41 00... Body Gap Dimensions

The dimensions specified in this document are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform join.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

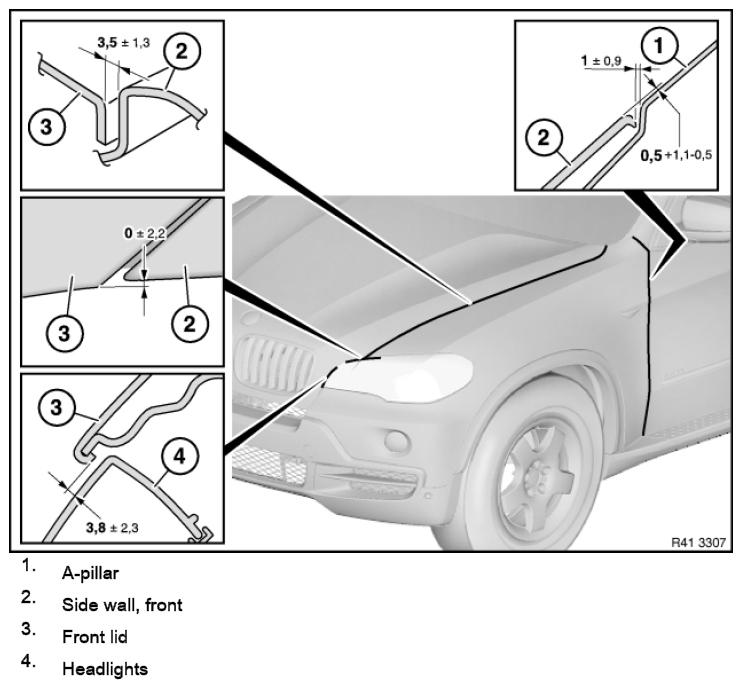

Fig 1: Headlamp, Hood, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Front lid
Side wall, front

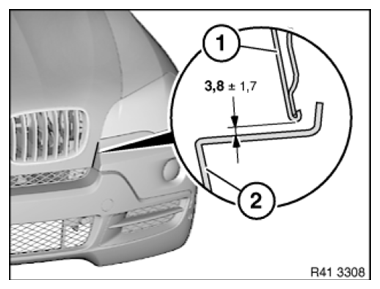

Fig 2: Hood And Front Bumper Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.

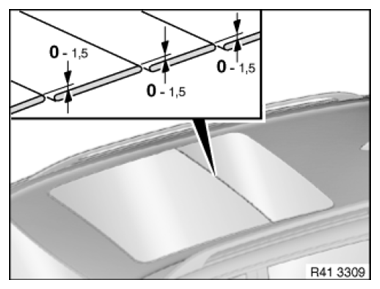

Fig 3: Front Moonroof Panel And Rear Moonroof Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

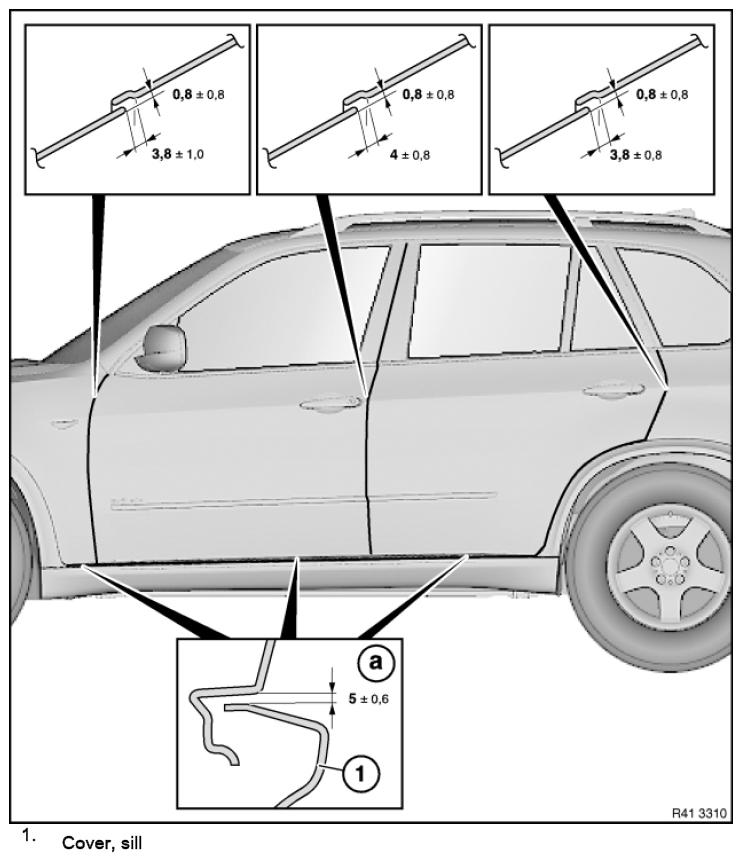

Fig 4: Front Fender, Front Door, Rear Door Quarter Panel And Rocker Trim Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Only on version with aluminum running board:

Dimension a = 7.0±0.6 mm

Rear door
Trim, wheel arch, rear

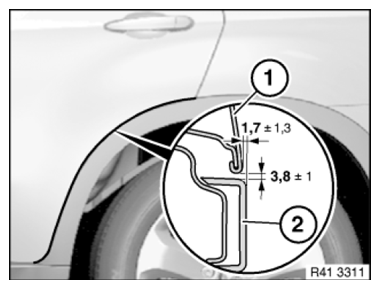

Fig 5: Rear Door And Rear Wheel Arch Cover Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.

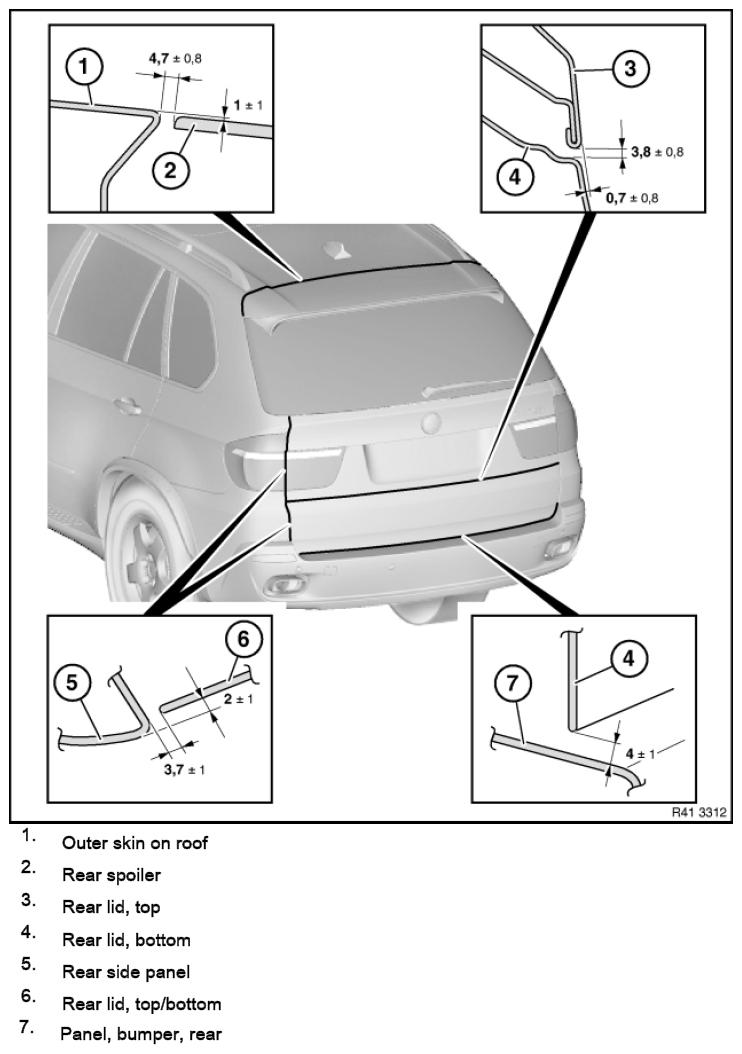

Fig 6: Roof, Tailgate, Rear Bumper Body Gap Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel
Rear spoiler

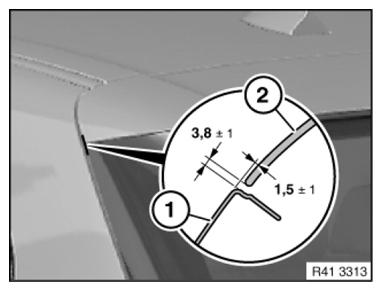

Fig 7: Quarter Panel And Tailgate Spoiler Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.

Rear window
Rear side panel

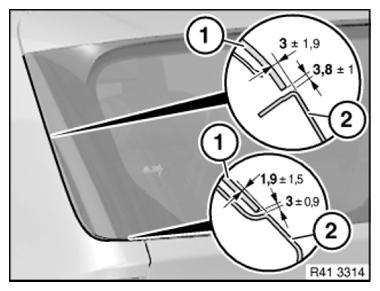

Fig 8: Quarter Glass And Quarter Panel Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.
