61 13... Repairing ribbon cables

Special tools required:

NOTE:

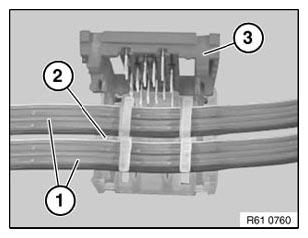

Place ribbon cables (1) in connector housing (2) and close cover (3).

Fig 1: Place Ribbon Cables In Connector Housing And Close Cover

Courtesy of BMW OF NORTH AMERICA, INC.

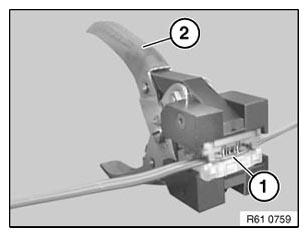

Place connector housing (1) in tool (2) 61 1 190 .

Close tool (2).

Fig 2: Identifying Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.
