61 71 004 Adjusting windscreen washer jets

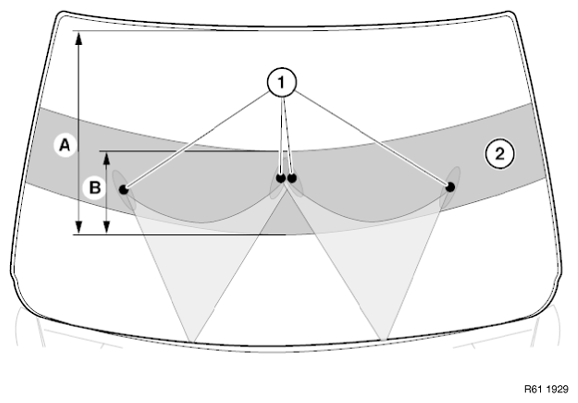

Fig 1: Identifying Windscreen Washer Jet Adjustment Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Mark tolerance range (2) with adhesive tape (A=500 mm/B=200 mm).

Actuate windscreen washer system.

Contact points (1) must be in tolerance range (2).

If necessary, adjust left or right washer jet (1) by way of screw (2).

NOTE: If necessary, remove adhesive residue from windscreen.
Fill up with washer fluid.

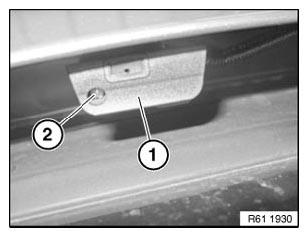

Fig 2: Identifying Left Or Right Washer Jet And Screw
