41 00... Body Gap Dimensions

The dimensions specified in this information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform join.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

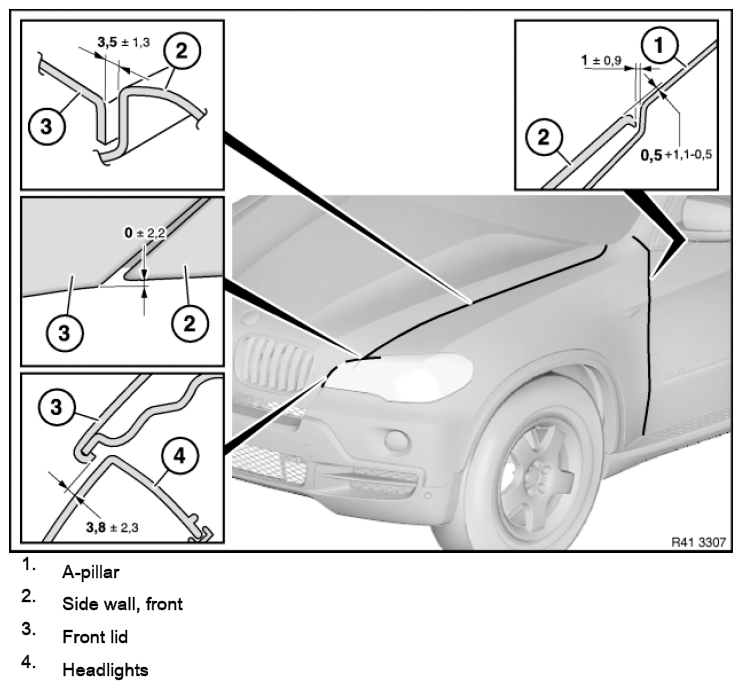

Fig 1: Hood, Headlamps, Hood, Front Pillar And Front Fender Body Gap Dimensions And Measurement Points
G08558362Courtesy of BMW OF NORTH AMERICA, INC.

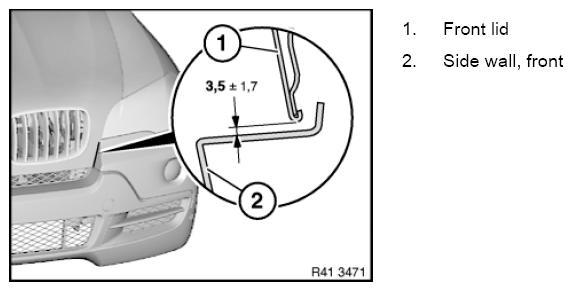

Fig 2: Hood And Front Fender Body Gap Dimensions And Measurement Points
G08558363Courtesy of BMW OF NORTH AMERICA, INC.

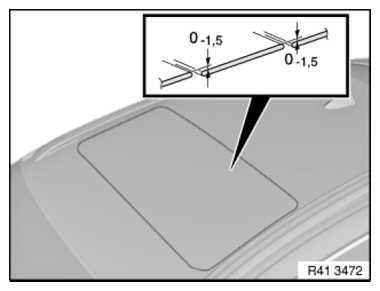

Fig 3: Roof And Moonroof Body Gap Dimensions And Measurement Points
G08558364Courtesy of BMW OF NORTH AMERICA, INC.

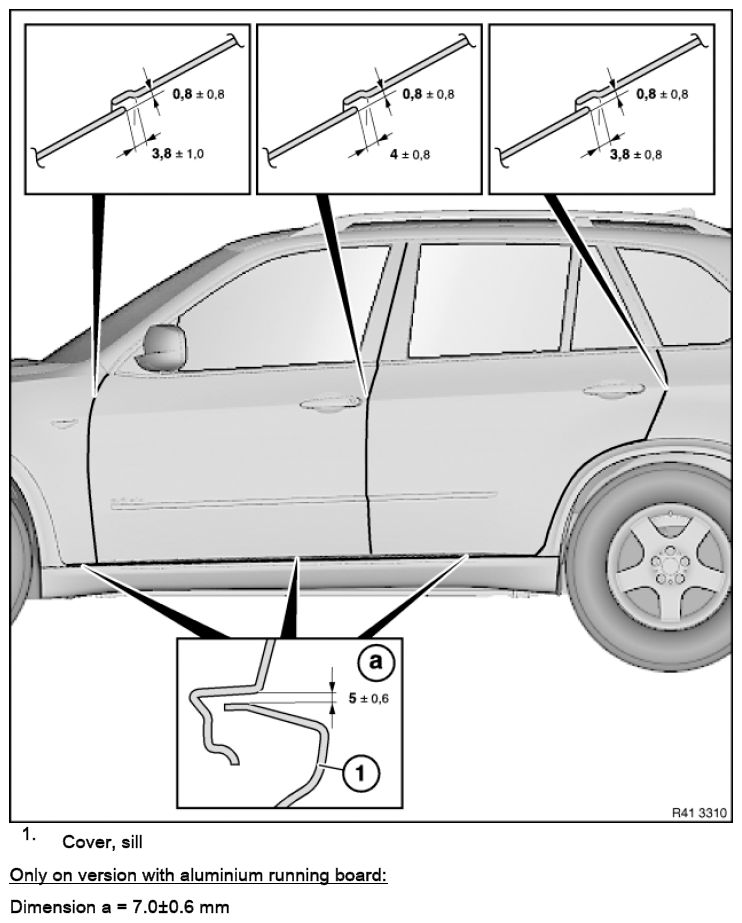

Fig 4: Front Fender, Front Door, Rear Door And Rocker Trim Panel Body Gap Dimensions And Measurement Points
G08558365Courtesy of BMW OF NORTH AMERICA, INC.

Only on version with aluminum running board:

Dimension a = 7.0±0.6 mm

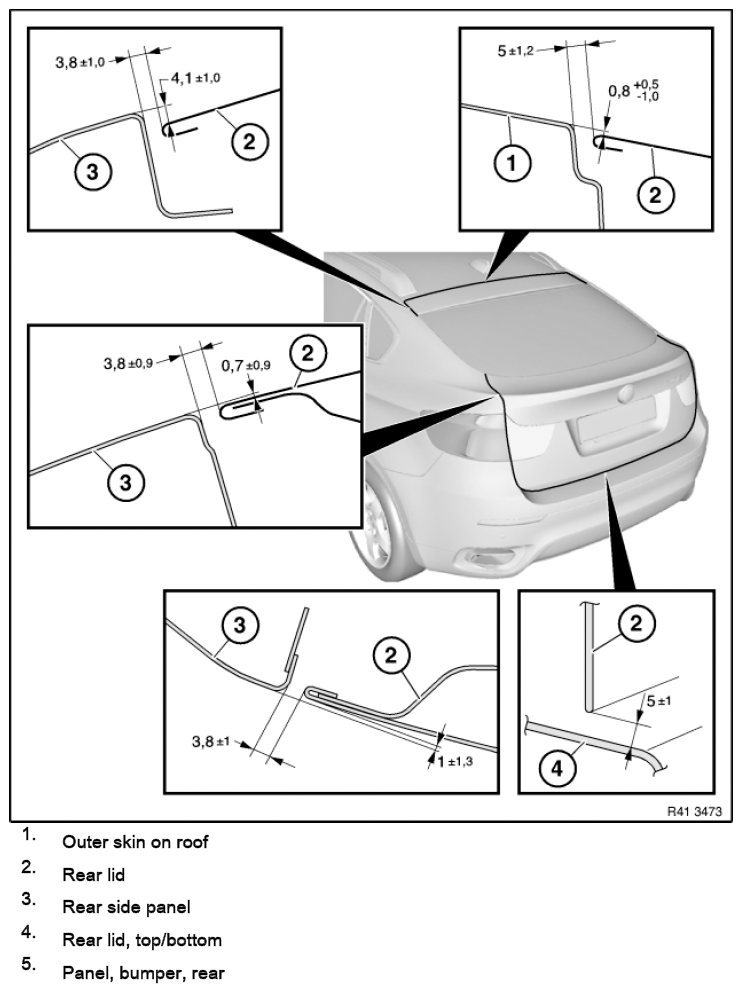

Fig 5: Rear Roof, Liftgate, Quarter Panel And Rear Bumper Body Gap Dimensions And Measurement Points (W/Aluminum Running Board)
G08558366Courtesy of BMW OF NORTH AMERICA, INC.
