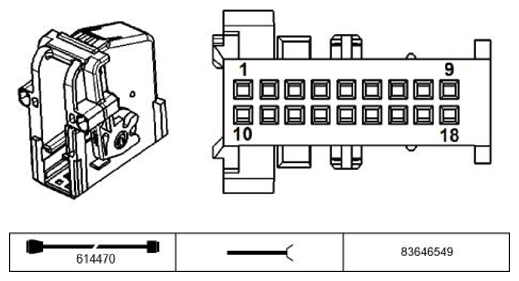

Instrument Cluster Control Module X16 Connector End View
Pin Assignments At Plug Connector X16
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not occupied | |
| 2 | -- | Not occupied | |
| 3 | -- | Not occupied | |
| 4 | A | Power supply, outside temperature sensor | Outside temperature sensor |
| 5 | E | Signal, outside temperature sensor | Outside temperature sensor |
| 6 | E/A | CAN bus high | CAN bus connector |
| 7 | E/A | CAN bus low | CAN bus connector |
| 8 | -- | Not occupied | |
| 9 | E | Supply, terminal 30G | Fuse F131 up to 2009_08 |
| 9 | E | Supply, terminal 30 | Fuse F134 from 2009_09 |
| 10 | -- | Not occupied | |
| 11 | -- | Not occupied | |
| 12 | -- | Not occupied | |
| 13 | -- | Not occupied | |
| 14 | E | Signal Gearshift paddles | Steering column switch cluster |
| 15 | -- | Not occupied | |
| 16 | -- | Not occupied | |
| 17 | E | Not occupied | |
| 18 | M | Ground | Ground point |
