51 00... Service position of engine hood/bonnet
NOTE:
Only the special tool pertaining to the model series can be selected.
SPECIAL TOOL REFERENCE CHART
| Model series | Special tool |
|---|---|
| E89 | 51 2 170 SUPPORT |
WARNING:
Risk of injury and damage!
Engine hood/bonnet must be held by a second person helping.
NOTE:
The right side is removed in the same way as the left side.

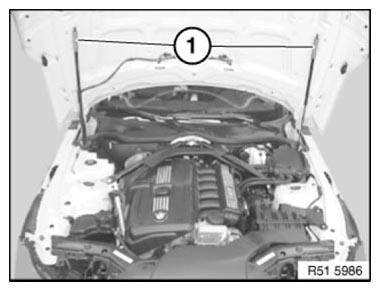

Special tool can only be used on housing (1) of gas spring strut.
Release GAS SPRING STRUT on left/right housing side.

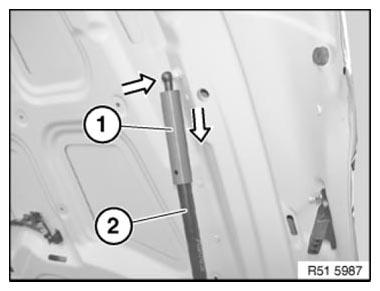

Slide special tool (1) over housing (2) of gas spring strut.
Clip ball socket of special tool on ball stud.
