61 14... Removing and installing/replacing engine compartment B+ terminal

Necessary preliminary tasks

• Read fault memory.
• Clamp off BATTERY NEGATIVE LEAD

Remove cover (1).

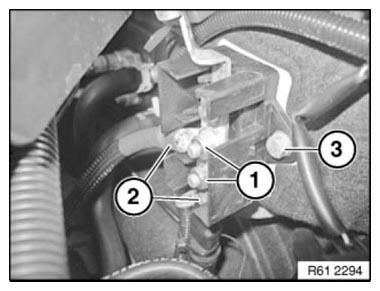

Unscrew nuts (1).

Tightening torque 61 12 4AZ .

Disconnect battery positive leads (2).

Release screw (3).

Remove B+ terminal.
