51 32... Adjusting vertical dimension of front left or right side window
Special tools required:
- 51 0 342
- 51 0 400
Prerequisite:
- Vehicle must be standing on its wheels on a level floor
- FRONT DOOR correctly adjusted to fit
IMPORTANT:
When closing, the door window glass must not jam on the trim strip in any area of the window (window glass breakage).
Necessary preliminary tasks:
- Remove OUTER WINDOW CAVITY WEATHER STRIP
- Remove FRONT DOOR TRIM PANEL
Vertical dimension
Raise the door window.
Close front door.

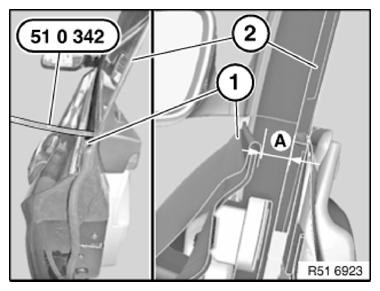

Measure dimension (A) with special tool 51 0 342 between flange (1) and door window glass (2).
A 10.7 mm ± 0.8 mm
Inside of flange edge (1) to door window glass (2) in area of B-pillar.

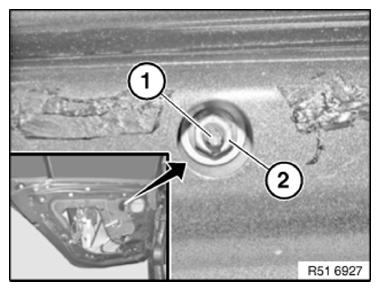

Adjusting vertical dimension
