HIGH PRESSURE PUMP TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 06 16, Date of Issue: April 2016

BMW:	F30 (328d Sedan); F31 (328d Sports Wagon); F25 (328d X3); F34 (328d Gran Turismo)
GROUP:	Tools and Equipment

SUBJECT

High Pressure Pump Tool

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

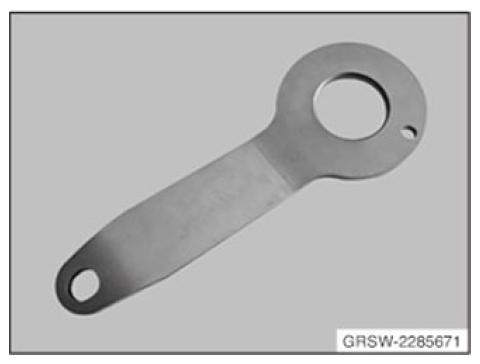

Pump Adjustment Tool

Order P/N 83 30 2 285 671

Used to adjust the High Pressure pump during installation of the timing chain.

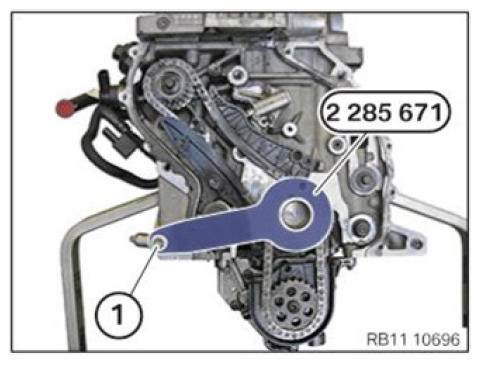

Transmission bolt (1) used for holding the tool in place.
For complete detailed information on this tool refer to ISTA Repair Manual section 11 31 052.

SPECIAL TOOL WARRANTY

Terms of the Parts department Special Tool Warranty can be viewed and printed by following the path below:

Go to TIS.
Select "Tools and Equipment."
Select "Special Tool Parts Warranty."
