41 00... Frame Reference Body Dimension

Dimensions in mm.

Dimension tolerances:

The control points shown serve to check the body and the set of attachments.

The specified dimensions always refer to the center point of the bore hole/screw.

Under Body View 1

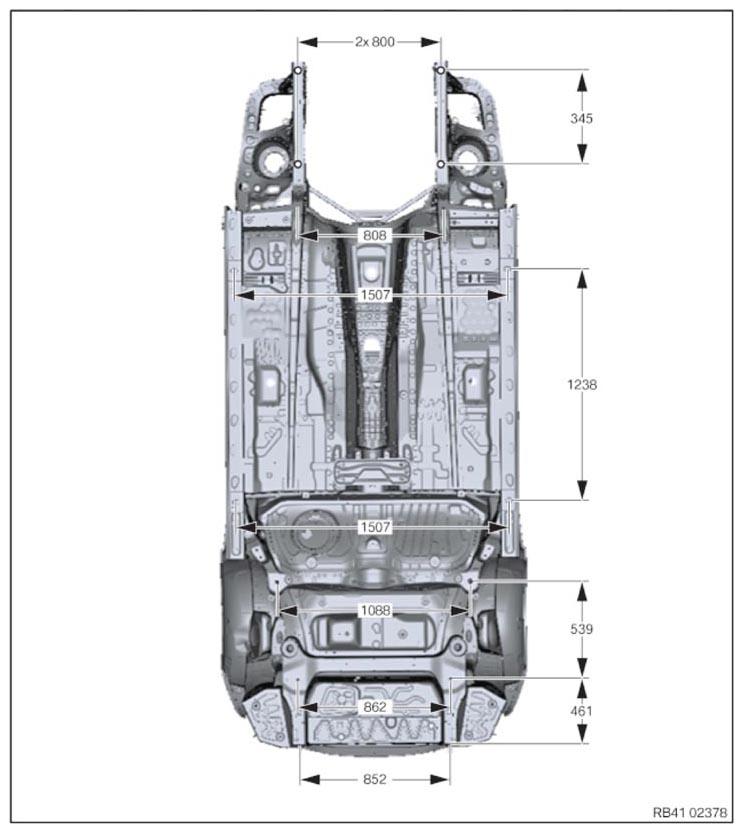

Fig 1: Under Body Frame Reference Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Under Body View 2

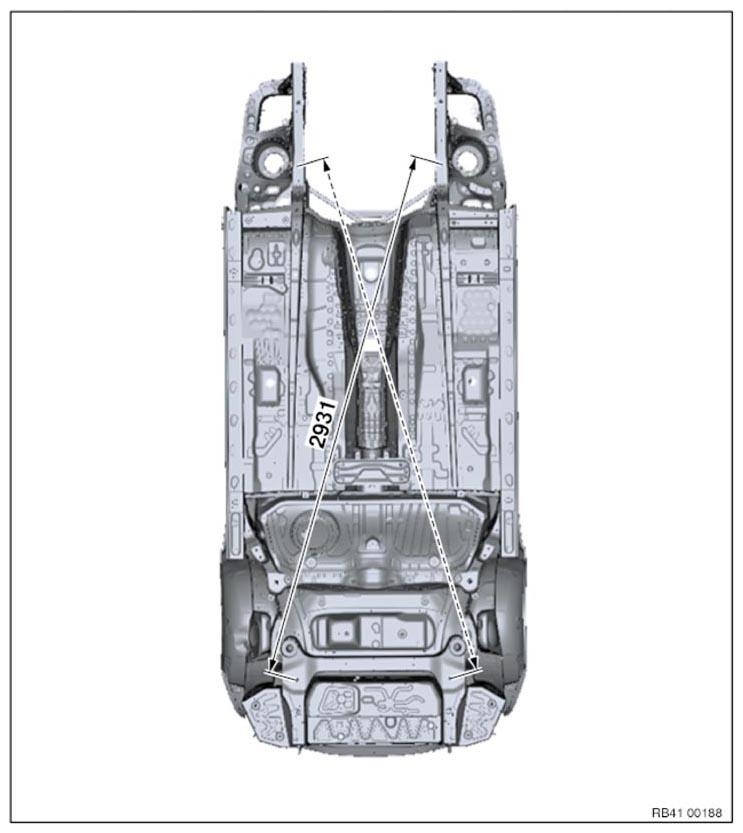

Fig 2: Under Body Frame Reference Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

Fig 3: Engine Compartment Frame Reference Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

View Of B-Pillar (Two-Door)

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement 1511 mm between the top screw-on points of the lock striker.
