Cell Module Charger (04 15 14)

Publication date: 2015-12-01
Reference number: 04 15 14

CELL MODULE CHARGER

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 15 14, Date of Issue: December 2015

BMW:	I01 (i3 and i3 REx)
GROUP:	Tools and Equipment

Superceded Bulletin(s): SI B04 15 14, Date of Issue: October 2014

NOTE: This Service Information bulletin supersedes SI B04 15 14 dated October 2014.

SUBJECT

Cell Module Charger

SITUATION

Distribution of the following tool through the Automatic Tool Shipment Program is complete. Additional units may be purchased through the RDC.

When servicing the High-voltage Battery, the state of charge (SOC) of the new Cell Module must match the SOC of the original (not replaced) Cell Modules. This may require either charging or discharging of the new Cell Module.

The Cell Module Charger must only be used on a single (1) High-voltage (HV) battery module at a time. Single modules must always be charged on a suitable non-conductive surface before being installed in the battery housing.

Periodically, the Owner's Manual may be updated with new information. The latest version Owner's Manual may be downloaded and printed from TIS. Follow the path below.

Go to TIS
Select "Tools and Equipment"
Select "Deutronic DBL1200HV - Manual"

If during normal operation of the cell module charger a "Password" or "Start Code" is required input "GO".

IMPORTANT: Only properly trained personnel, who have passed all applicable technical training courses, should perform any maintenance or repairs on any Hybrid or Electric Vehicle. Work performed by unqualified persons may result in severe injury or damage to the vehicle. Additional information may be found in REP 61 00... Observe safety instructions when handling electric vehicles.

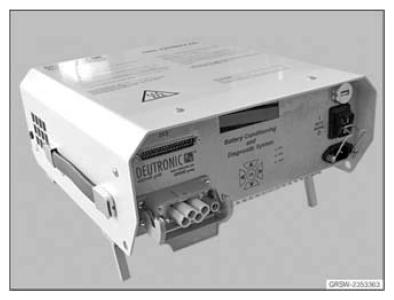

Cell Module Charger

Deutronic DBL1200HV-60

Order P/N 83 30 2 359 907

Price - Refer to ATLAS

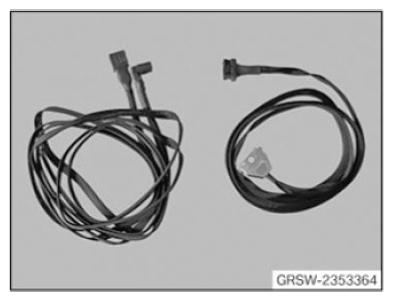

I01 Wiring Harness

Order P/N 83 30 2 353 364

Price - Refer to ATLAS

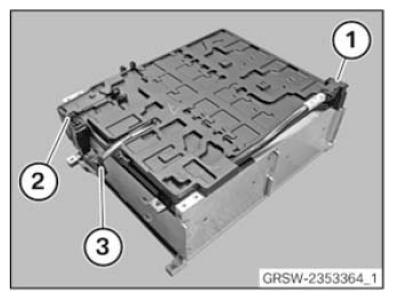

Connections from the Module Charger to the HV-Battery module are as follows:

Positive terminal
Negative terminal
Connection used to monitor the module voltage and temperature

Always read the safety instructions in ISTA and the Owner's Manual before using this device.

SPECIFICATIONS

L x W x H	14" x 12" x 6"
Weight	20 lb
Voltage Supply	100V to 250V AC/45Hz to 65 Hz
External operating temperature	41°F to 113°F
External storage temperature	41°F to 104°F
Humidity	95% no direct rain

DELIVERY SPECIFICATIONS

The Cell Module Charger comes with the following:

Module Charger
Comprehensive operating instructions
Main power leads

The I01 Wiring Harness comes with the following:

Negative lead
Positive lead
Monitoring lead
