12 31... Replacing alternator belt pulley: Notes
Remove and install alternator drive belt.

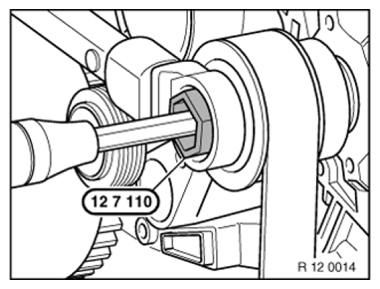

Depending on alternator type, grip shaft with:
- hexagon socket
- multi-tooth socket or
- Torx socket wrench
Release nut with special tool 12 7 110.
Installation:
Tightening torque 12 31 2AZ/3AZ .
