Install New Gasket
Install New Gasket

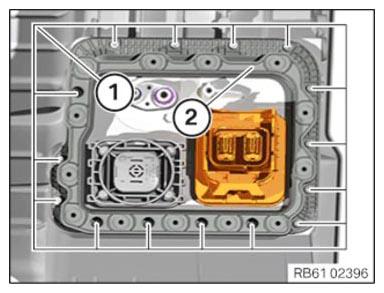

Fit the seal (2) and tighten screws (1).
TIGHTENING TORQUE SPECIFICATION
Seal to lower housing section
M5x18
Replace screw.
Tightening torque
6.8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
