Installing All Gates

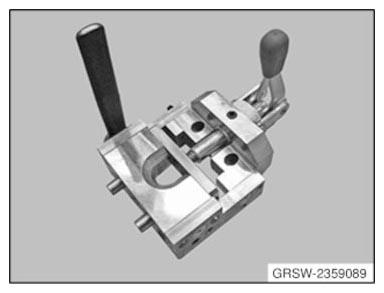

Have the special tool 2 359 089 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

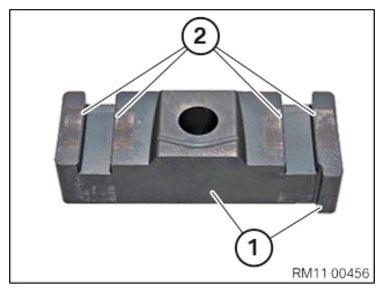

Clean contact surfaces (1) and (2) and remove the oil, grease and dirt.

Courtesy of BMW OF NORTH AMERICA, INC.

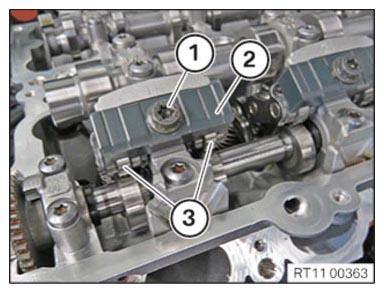

Position the gate (2) and hand-tighten the screw (1).
Make sure the intermediate lever (3) is in the correct installation position.

Courtesy of BMW OF NORTH AMERICA, INC.

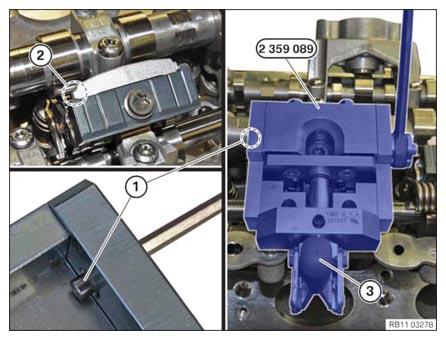

Position the special tool 2 359 089 on the cylinder head.
Pre-tension the gate with the lever (3).
Abut the screw (1) in the area (2).
Make sure that the special tool 2 359 089 does not rotate during this process.

Courtesy of BMW OF NORTH AMERICA, INC.

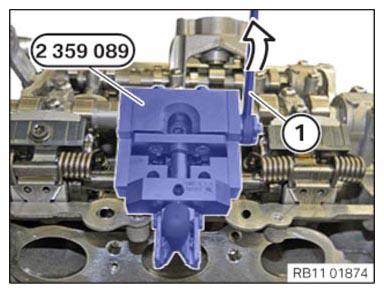

Secure the gate with the lever (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

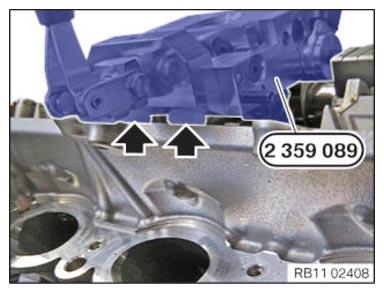

Make sure that the special tool 2 359 089 rests flat against the cylinder head (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

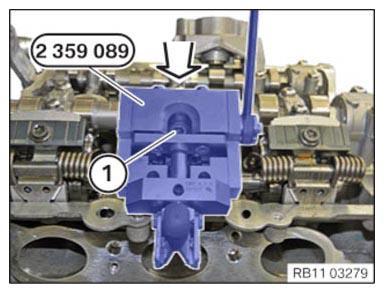

Press the special tool onto the cylinder head 2 359 089 in arrow direction and tighten the screw (1) simultaneously.

TIGHTENING TORQUE SPECIFICATION

Gate to bearing bracket
M7x35	Tightening Torque	23 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

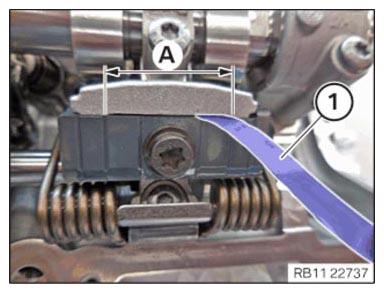

Check the conventional gauge (1) in the area (A) for the correct gap dimension.

TECHNICAL DATA SPECIFICATION

Gap dimension between gate and bearing bracket
Gap dimension A		0.03 mm

Courtesy of BMW OF NORTH AMERICA, INC.

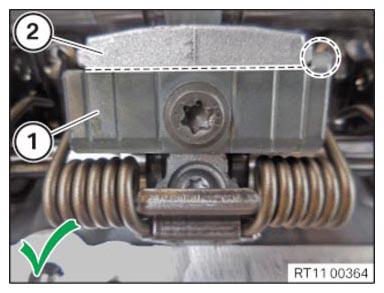

Make sure the gate (1) lies correctly against the bearing bracket (2).
The gate (1) is correctly installed in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

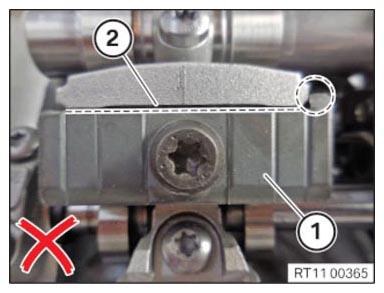

Make sure that the gate lies (1) correctly on the bearing bracket (2).
The gate (1) is not correctly installed in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
Repeat the step for all the gates.
